Concept

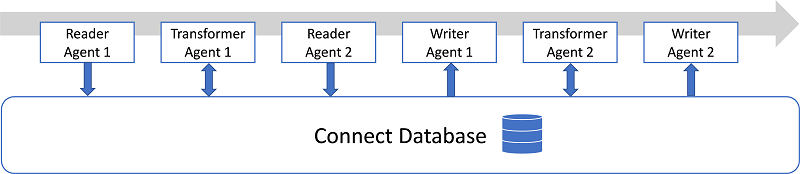

GAMS Connect is a framework inspired by the concept of a so-called ETL (extract, transform, load) procedure that allows to integrate data from various data sources. The GAMS Connect framework consists of the Connect database and the Connect agents that operate on the Connect database. Via the available Connect interfaces the user passes instructions to call Connect agents for reading data from various file types into the Connect database, transforming data in the Connect database, and writing data from the Connect database to various file types. Instructions are passed in YAML syntax. Note that in contrast to a typical ETL procedure, read, transform and write operations do not need to be strictly separated.

Usage

GAMS Connect is available via the GAMS command line parameters ConnectIn and ConnectOut, via embedded code Connect, and as a standalone command line utility gamsconnect.

Instructions processed by the GAMS Connect interfaces need to be passed in YAML syntax as follows:

- <agent name1>:
    <root option1>: <value>
    <root option2>: <value>
    .
    .
    <root option3>:
      - <option1>: <value>
        <option2>: <value>
        .
        .
      - <option1>: <value>
        <option2>: <value>
        .
        .
      .
      .
- <agent name2>:
    .
    .
.
.

The user lists the instructions to be performed. All individual agent instructions begin at the same indentation level starting with a - (a dash and a space) followed by the Connect agent name and a : (a colon). Connect agent options are represented in a simple <option>: <value> form. Please check the documentation of Connect Agents for available options. Options at the first indentation level are called root options and typically define general settings, e.g. the file name. While some agents only have root options, others have a more complex options structure, where a root option may be a list of dictionaries containing other options. A common example is the root option symbols (see e.g. GDXReader). Via symbols many agents allow to define symbol specific options, e.g. the name of the symbol. The option tables of agents with a more complex options structure provide a Scope to reflect this structure - options may be allowed at the first indentation level (root) and/or are assigned to other root options (e.g. symbols).

Checkout the GAMS Studio Connect Editor that allows creating and editing YAML instructions by a simple drag and drop of agents and corresponding options.

Note that YAML syntax also supports an abbreviated form for lists and dictionary, e.g. <root option3>: [ {<option1>: <value>, <option2>: <value>}, {<option1>: <value>, <option2>: <value>} ].

Here is an example that uses embedded Connect code to process instructions:

$onecho > distance.csv
i;j;distance in miles
seattle;new-york;2,5
seattle;chicago;1,7
seattle;topeka;1,8
san-diego;new-york;2,5
san-diego;chicago;1,8
san-diego;topeka;1,4
$offecho

$onecho > capacity.csv
i,capacity in cases
seattle,350.0
san-diego,600.0
$offecho

Set i 'Suppliers', j 'Markets';
Parameter d(i<,j<) 'Distance', a(i) 'Capacity';

$onEmbeddedCode Connect:
- CSVReader:
    file: distance.csv
    name: distance
    indexColumns: [1, 2]
    valueColumns: [3]
    fieldSeparator: ';'
    decimalSeparator: ','
- CSVReader:
    file: capacity.csv
    name: capacity
    indexColumns: [1]
    valueColumns: [2]
- GAMSWriter:
    symbols:
      - name: distance
        newName: d
      - name: capacity
        newName: a
$offEmbeddedCode

display i, j, d, a;

In this example, we are reading two CSV files distance.csv and capacity.csv using the CSVReader. Then we directly write to symbols in GAMS using the GAMSWriter.

Initialization and Execution Phase

The Connect database processes instructions in two phases: The initialization phase and the execution phase. During the initialization phase, the Connect database sequentially instantiates the specified agents and validates the agent instructions, i.e. validates the specified agent options. If all agents passed the initialization phase, the Connect database continues with the execution phase. In this step, the agent instructions are executed. If an error occurs during initialization or execution of agent instructions, subsequent agents are not further processed and the Connect database immediately returns the error.

GAMS Studio Connect Editor

The GAMS Studio Connect Editor provides functionalities for creating and editing so-called GAMS Connect files, containing instructions in YAML syntax which will be processed by the GAMS Connect interfaces. With the Connect Editor, the user can create YAML instructions by a simple drag and drop of agents and corresponding options, instead of creating the YAML instructions for Connect manually. The content of the Connect file can also be displayed and edited in plain YAML format using a text editor. See documentation of the Connect Editor for more information.

Connect Agents Overview

Current Connect agents support the following data source formats: CSV, Excel, GDX and SQL. The following Connect agents are available:

Connect agent	Description	Supported symbol types
Concatenate	Allows concatenating multiple symbols in the Connect database.	Sets and parameters
CSVReader	Allows reading a symbol from a specified CSV file into the Connect database.	Sets and parameters
CSVWriter	Allows writing a symbol in the Connect database to a specified CSV file.	Sets and parameters
DomainWriter	Allows rewriting the domain information of an existing Connect symbol.	Sets, parameters, variables, and equations
ExcelReader	Allows reading symbols from a specified Excel file into the Connect database.	Sets and parameters
ExcelWriter	Allows writing symbols in the Connect database to a specified Excel file.	Sets and parameters
Filter	Allows to reduce symbol data by applying filters on labels and numerical values.	Sets, parameters, variables, and equations
GAMSReader	Allows reading symbols from the GAMS database into the Connect database.	Sets, parameters, variables, and equations
GAMSWriter	Allows writing symbols in the Connect database to the GAMS database.	Sets, parameters, variables, and equations
GDXReader	Allows reading symbols from a specified GDX file into the Connect database.	Sets, parameters, variables, and equations
GDXWriter	Allows writing symbols in the Connect database to a specified GDX file.	Sets, parameters, variables, and equations
LabelManipulator	Allows to modify labels of symbols in the Connect database.	Sets, parameters, variables, and equations
Projection	Allows index reordering, projection onto a reduced index space, and expansion to an extended index space through index duplication of a GAMS symbol.	Sets, parameters, variables, and equations
PythonCode	Allows executing arbitrary Python code.	-
RawCSVReader	Allows reading unstructured data from a specified CSV file into the Connect database.	-
RawExcelReader	Allows reading unstructured data from a specified Excel file into the Connect database.	-
SQLReader	Allows reading symbols from a specified SQL database into the Connect database.	Sets and parameters
SQLWriter	Allows writing symbols in the Connect database to a specified SQL database.	Sets and parameters

Getting Started Examples

We introduce the basic functionalities of GAMS Connect agents on some simple examples. For more examples see section Examples.

CSV

The following example (a modified version of the trnsport model) shows how to read and write CSV files. The full example is part of DataLib as model connect03. Here is a code snippet of the first lines:

$onEcho > distance.csv
i,new-york,chicago,topeka
seattle,2.5,1.7,1.8
san-diego,2.5,1.8,1.4
$offEcho

$onEcho > capacity.csv
i,capacity
seattle,350
san-diego,600
$offEcho

$onEcho > demand.csv
j,demand
new-york,325
chicago,300
topeka,275
$offEcho

Set i 'canning plants', j 'markets';

Parameter d(i<,j<)  'distance in thousands of miles'
          a(i)      'capacity of plant i in cases'
          b(j)      'demand at market j in cases';

$onEmbeddedCode Connect:
- CSVReader:
    file: distance.csv
    name: d
    indexColumns: 1
    valueColumns: "2:lastCol"
- CSVReader:
    file: capacity.csv
    name: a
    indexColumns: 1
    valueColumns: 2
- CSVReader:
    file: demand.csv
    name: b
    indexColumns: 1
    valueColumns: 2
- GAMSWriter:
    symbols: all
$offEmbeddedCode

[...]

It starts out with the declaration of sets and parameters. With compile-time embedded Connect code, data for the parameters is read from CSV files using the Connect agent CSVReader. The CSVReader agent, for example, reads the CSV file distance.csv and creates the parameter d in the Connect database. The name of the parameter must be given by the option name. Column number 1 is specified as the first domain set using option indexColumns. The valueColumns option is used to specify the column numbers 2, 3 and 4 containing the values. Per default, the first row of the columns specified via valueColumns will be used as the second domain set. The symbolic constant lastCol can be used if the number of index or value columns is unknown. As a last step, all symbols from the Connect database are written to the GAMS database using the Connect agent GAMSWriter. The GAMSWriter agent makes the parameters d, a and b available outside the embedded Connect code. Note that the sets i and j are defined implicitly through parameter d.

Finally, after solving the transport model, Connect can be used to export results to a CSV file:

[...]

Model transport / all /;

solve transport using lp minimizing z;

embeddedCode Connect:
- GAMSReader:
    symbols:
      - name: x
- Projection:
    name: x.l(i,j)
    newName: x_level(i,j)
- CSVWriter:
    file: shipment_quantities.csv
    name: x_level
    unstack: True
endEmbeddedCode

This time, we need to use execution-time embedded Connect code. The Connect agent GAMSReader imports variable x into the Connect database. With the Connect agent CSVWriter we write the variable level to the CSV file shipment_quantities.csv:

i_0,new-york,chicago,topeka
seattle,50.0,300.0,0.0
san-diego,275.0,0.0,275.0

Setting the option unstack to True allows to use the last dimension as the header row.

Excel

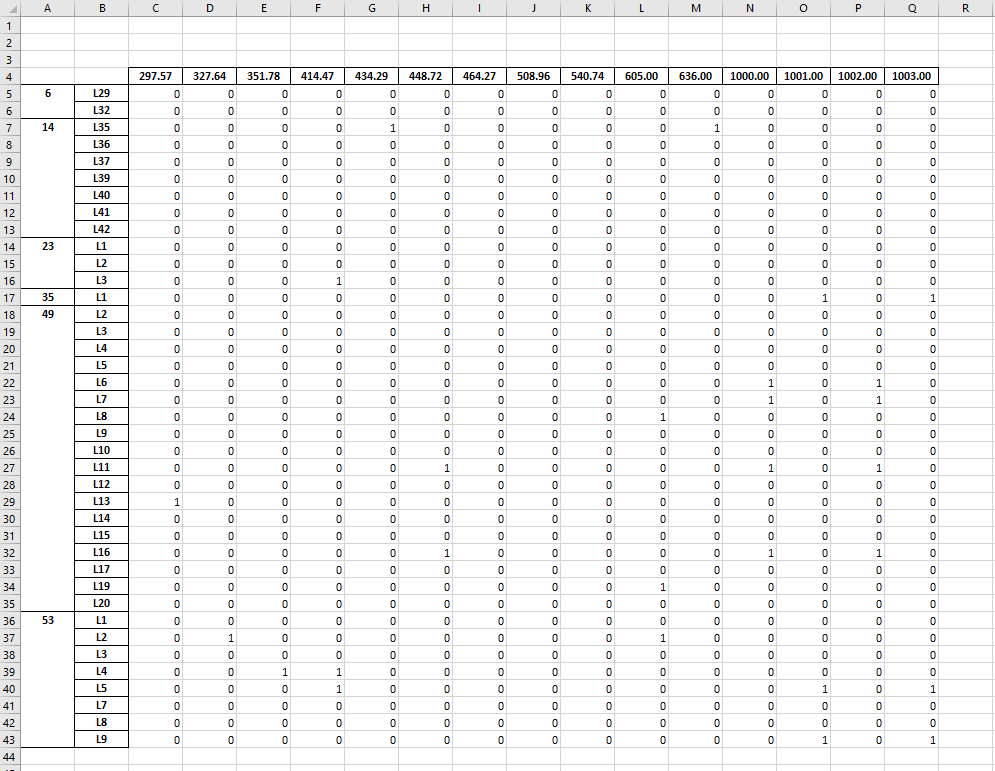

The following example is part of GAMS Model Library as model cta and shows how to read and write Excel spreadsheets. Here is a code snippet of the first lines:

Set
   i 'rows'
   j 'columns'
   k 'planes';

Parameter
   dat(k<,i<,j<) 'unprotected data table'
   pro(k,i,j)    'information sensitive cells';

* extract data from Excel workbook
$onEmbeddedCode Connect:
- ExcelReader:
    file: cox3.xlsx
    symbols:
      - name: dat
        range: Sheet1!A1
        rowDimension: 2
        columnDimension: 1
      - name: pro
        range: Sheet2!A1
        rowDimension: 2
        columnDimension: 1
- GAMSWriter:
    symbols: all
$offEmbeddedCode

[...]

It starts out with the declaration of sets and parameters. With compile-time embedded Connect code, data for the parameters is read from the Excel file cox3.xlsx using the Connect agent ExcelReader. The ExcelReader agent allows reading data for multiple symbols that are listed under the keyword symbols, here, parameter dat and pro. For each symbol, the symbol name is given by option name and the Excel range by option range. The option rowDimension defines that the first two columns of the data range will be used for the labels. In addition, the option columnDimension defines that the first row of the data range will be used for the labels. As a last step, all symbols from the Connect database are written to the GAMS database using the Connect agent GAMSWriter. The GAMSWriter agent makes the parameters dat and pro available outside the embedded Connect code. Note that the sets i, j and k are defined implicitly through parameter dat.

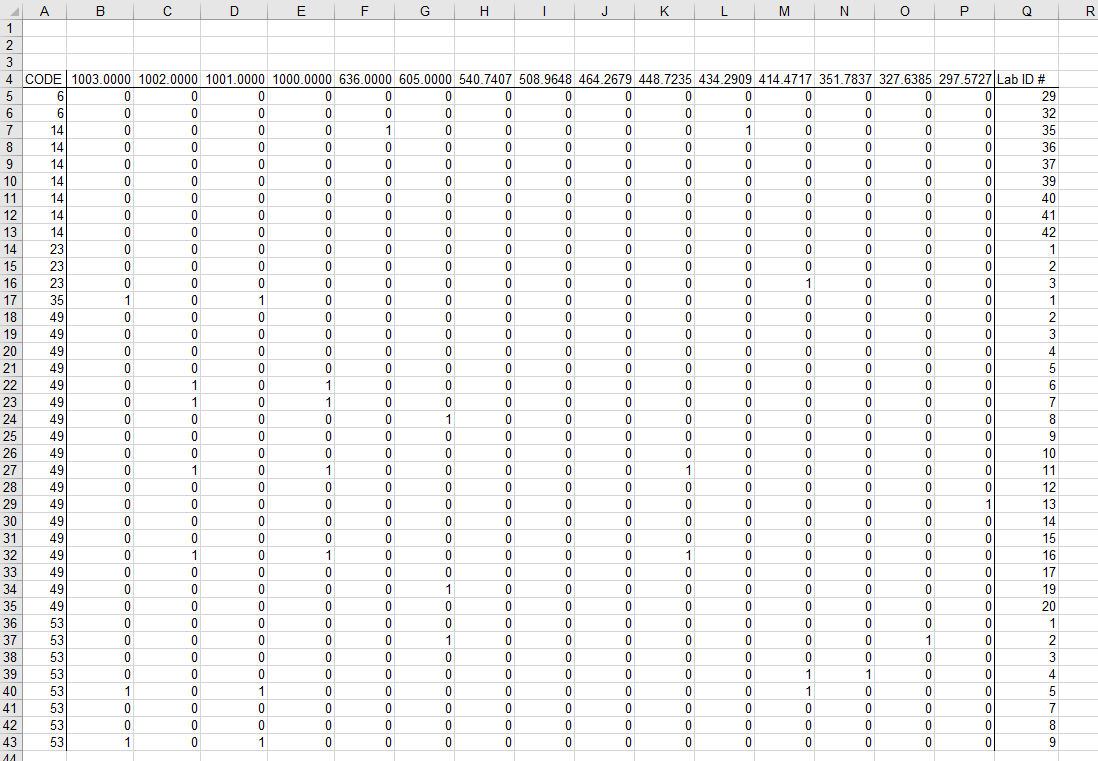

Finally, after solving the cox3c model with alternative solutions, Connect can be used to export results to Excel:

[...]

loop(l$((obj.l - best)/best <= 0.01),
   ll(l) = yes;
   binrep(s,l)             = round(b.l(s));
   binrep('','','Obj',l)   = obj.l;
   binrep('','','mSec',l)  = cox3c.resUsd*1000;
   binrep('','','nodes',l) = cox3c.nodUsd;
   binrep('Comp','Cells','Adjusted',l) = sum((i,j,k)$(not s(i,j,k)), 1$round(adjn.l(i,j,k) + adjp.l(i,j,k)));
   solve cox3c min obj using mip;
);

embeddedCode Connect:
- GAMSReader:
    symbols:
      - name: binrep
- ExcelWriter:
    file: results.xlsx
    clearSheet: True
    symbols:
      - name: binrep
endEmbeddedCode

This time, we need to use execution-time embedded Connect code. The Connect agent GAMSReader imports the reporting parameter binrep into the Connect database. With the Connect agent ExcelWriter we write the parameter into the binrep sheet of the Excel file results.xlsx.

SQL

The following example (a modified version of the whouse model) shows how to read from and write to a SQL database (sqlite). The full example is part of DataLib as model connect04. Here is a code snippet of the first lines:

[...]

Set t 'time in quarters';

Parameter
   price(t)  'selling price ($ per unit)'
   istock(t) 'initial stock      (units)';

Scalar
   storecost 'storage cost  ($ per quarter per unit)'
   storecap  'stocking capacity of warehouse (units)';

$onEmbeddedCode Connect:
- SQLReader:
    connection: {"database": "whouse.db"}
    symbols:
      - name: t
        query: "SELECT * FROM timeTable;"
        type: set
      - name: price
        query: "SELECT * FROM priceTable;"
      - name: istock
        query: "SELECT * FROM iniStockTable;"
      - name: storecost
        query: "SELECT * FROM storeCostTable;"
      - name: storecap
        query: "SELECT * FROM storeCapTable;"
- GAMSWriter:
    symbols: all
$offEmbeddedCode

[...]

It starts out with the declaration of sets and parameters. With compile-time embedded Connect code, data for all the symbols are read from the sqlite database whouse.db using the Connect agent SQLReader by passing the connection url through the option connection. The SQLReader agent, for example, queries the table priceTable for data and creates the parameter price in the Connect database. The SQLReader allows reading data for multiple symbols that are listed under the keyword symbols and are fetched through the same connection. For each symbol the name must be given by the option name. The SQL query statement is passed through the option query. The symbol type can be specified using the option type. By default, every symbol is treated as a GAMS parameter. As a last step, all symbols from the Connect database are written to the GAMS database using the Connect agent GAMSWriter. The GAMSWriter agent makes all read in symbols available outside the embedded Connect code.

Further, after solving the warehouse model, Connect can be used to export the results to tables in the SQL database.

[...]

Model swp 'simple warehouse problem' / all /;

solve swp minimizing cost using lp;


embeddedCode Connect:
- GAMSReader:
    symbols: all
- Projection:
    name: stock.l(t)
    newName: stock_level(t)
- Projection:
    name: sell.l(t)
    newName: sell_level(t)
- Projection:
    name: buy.l(t)
    newName: buy_level(t)
- SQLWriter:
    connection: {"database": "whouse.db"}
    ifExists: replace
    symbols:
      - name: stock_level
        tableName: stock_level
      - name: sell_level
        tableName: sell_level
      - name: buy_level
        tableName: buy_level
endEmbeddedCode

Here, we need to use execution-time embedded Connect code. The Connect agent GAMSReader imports all the variables into the Connect database. The SQLWriter agent then writes each symbol to respective tables in the SQL database whouse.db. For example the stock level:

|t_0     |level     |
|:-------|:---------|
|q-1     |100.0     |
|q-2     |0.0       |
|q-3     |0.0       |
|q-4     |0.0       |

The ifExists option allows to either append to an extending table or replace it with new data. By default, the value for ifExists is set to fails.

Connect Agents

This section provides a reference for the available Connect agents and their options. Each agent provides a table overview of available options that allows to identify the scope of an option as well as its default value.

Each option can be either optional or required:

• If an optional option is omitted, it will automatically receive a default value.
• Required options must be provided, but only if the parent option has been specified. A typical example is the symbols option. By default, symbols is set to all for certain agents. However, if symbols is specified as a list of individual symbols (instead of all), then its child option name becomes required.

Note

The option value null indicates that an option is missing. For optional options, it is allowed to set null which will have the same effect as omitting the option. This means that even an explicit null will result in the default value for this option.

The table overview also allows to determine the scope of an option. In some cases, agents may have the same option available across different scopes, for example the root scope and the symbols scope:

• An omitted option in the symbols scope inherits its value from the root scope. Therefore, the technical default of the option in the symbols scope is null which indicates that the option is omitted and inherits the value from the root scope. Note that the table overview does not show this technical null default.
• If an option is specified in the symbols scope, it will not inherit the value from the root scope.

Concatenate

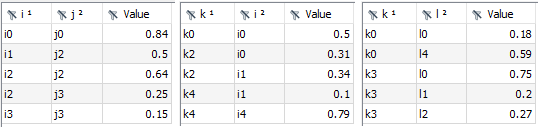

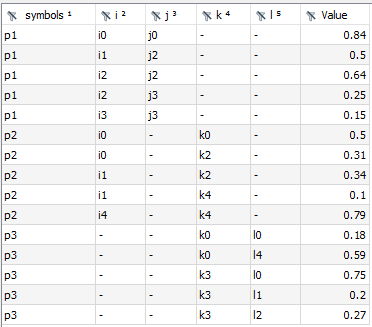

The Concatenate agent allows concatenating multiple symbols (sets or parameters) in the Connect database into a single symbol of the same type. It takes the union of domain sets of all concatenated symbols and uses that as the domain for the output symbol. There are several options to guide this domain finding process which are explained below. The general idea is best explained with an example. Consider three parameters p1(i,j), p2(k,i), and p3(k,l). The union of all domain sets is i, j, k, and l and, hence, the output symbol will be parameterOutput(symbols,i,j,k,l). The very first index of parameterOutput contains the name of the concatenated symbol followed by the domain sets. If a domain set is not used by a concatenated symbol the corresponding records in parameterOutput will feature the emptyUel, a - (dash) by default, as the following figures show:

The Concatenate agent is especially useful in combination with UI components that provide a pivot table, like GAMS MIRO, to represent many individual output symbols in a single powerful and configurable table format.

Obviously, there are more complex situations with respect to the domain of the resulting parameterOutput. For example, only a subset of domain sets are relevant and the remaining ones should be combined in as few index positions as possible. For this, assume only domain sets i and k from the above example are relevant and j and l can be combined in a single index position - a so-called universal domain. The resulting parameterOutput would look as follows:

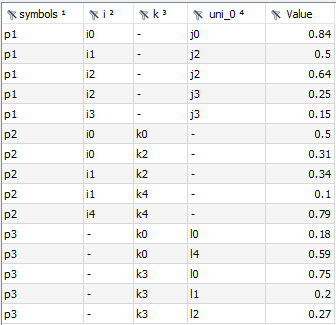

Moreover, the Concatenate agent needs to deal with universe domain sets * and domain sets that are used multiple times in a concatenated symbol. In addition to the symbols index (always the first index position of the output symbol), by default the union of domain sets of the concatenated symbols determine the domain of the output symbol. If a domain set (including the universe *) appears multiple times in a concatenated symbol domain, these duplicates will be part of the output symbol domain. For example, q1(*,i,j,*) and q2(*,i,i) will result in the output symbol parameterOutput(symbols,*,i,j,*,i,) by default, mapping index positions 1 to 4 of q1 to positions 2 to 5 of parameterOutput and index positions 1 to 3 of q2 to 2, 3, and 6.

All the described situations can be configured with a few options of the agent. The option outputDimensions allows to control the domain of the output symbol. The default behavior (outputDimension: all) gets the domain sets from the concatenated symbols and builds the union with duplicates if required. Alternatively, outputDimensions can be a list of the relevant domain sets (including an empty list). In any case, the agent iterates through the concatenated symbols and maps the index positions of a concatenated symbol into the index positions of the output symbol using the domain set names. Names not present in outputDimensions will be added as universal domains. Per default, the domain set names of a concatenated symbol will be the original domain set names as stored in the Connect database. There are two ways to adjust the domain set names of concatenated symbols: dimensionMap and an explicitly given domain for a symbol in the name option. The dimensionMap which is given once and holds for all symbols allows to map original domain names of concatenated symbols to the desired domain names. The name option provides such a map by symbol and via the index position rather than the domain names of the concatenated symbol. In the above example with p1(i,j), p2(k,i), and p3(k,l), we could put indices i and l as well as j and k together resulting in the following output symbol:

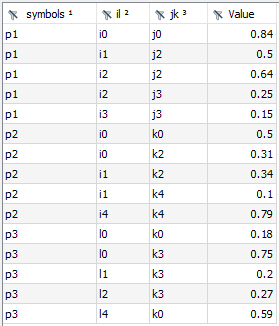

This can be accomplished in two ways: either we use dimensionMap: {i: il, l: il, j: jk, k: jk} or we use name: p1(il,jk), name: p2(jk,il), and name: p3(jk,il) to explicitly define the domain names for each symbol. Note that it is not required to set outputDimensions: [il,jk] since per default the union of domain sets is built using the mapped domain names. In case a domain set is used more than once in a domain of a concatenated symbol the mapping goes from left to right to find the corresponding output domain. If this is not desired, the Projection agent can be used to reorder index positions in symbols or explicit index naming can be used. In the example with q1(*,i,j,*) and q2(*,i,i), the second index position of q2 will be put together with the second index position of q1. If one wants to map the second i of q2 (in the third index position) together with the i of q1 (in second index position), one can, e.g. do with name: q1(*,i,j,*), and name: q2(*,i2,i).

Note

1. The Concatenate agent creates result symbols parameterOutput and setOutput for parameters and sets separately. Both have the same output domain. If different output domains for parameterOutput and setOutput are desired, use two instantiations of the Concatenate agent.
2. Variables and equations need to be turned into parameters with the Projection agent before they can be concatenated.
3. If option name is given without an explicit domain for the concatenated symbol, the domain names stored in the Connect container are used and mapped via the dimensionMap option, if provided.
4. A domain set of a concatenated symbol that cannot be assigned to an index in outputDimensions will be mapped to a so-called universal domain. The Concatenate agent automatically adds as many universal domains as required to the output symbols.

Here is an example that uses the Concatenate agent:

Sets
   i(i) / i0*i3 "i_text" /
   j(j) / j0*j3 "j_text" /
   k(k) / k0*k3 "k_text" /;

Parameters
   p1(i) / i1 1 /
   p2(k,j) / k1.j0 2, k1.j1 3, k1.j3 4 /
   p3(j,j) / j1.j2 5, j2.j0 6, j3.j1 7, j3.j2 8 /
   s / 5 /;

Positive Variable x(i,j);
x.l(i,j)$(uniform(0,1)>0.8) = uniformint(0,10);

embeddedCode Connect:
- GAMSReader:
    symbols: all
- Projection:
    name: x.l(i,j)
    newName: x_level(i,j)
- Concatenate:
    outputDimensions: [j,i]
- GDXWriter:
    file: concat_output.gdx
    symbols:
      - name: setOutput
      - name: parameterOutput
endEmbeddedCode

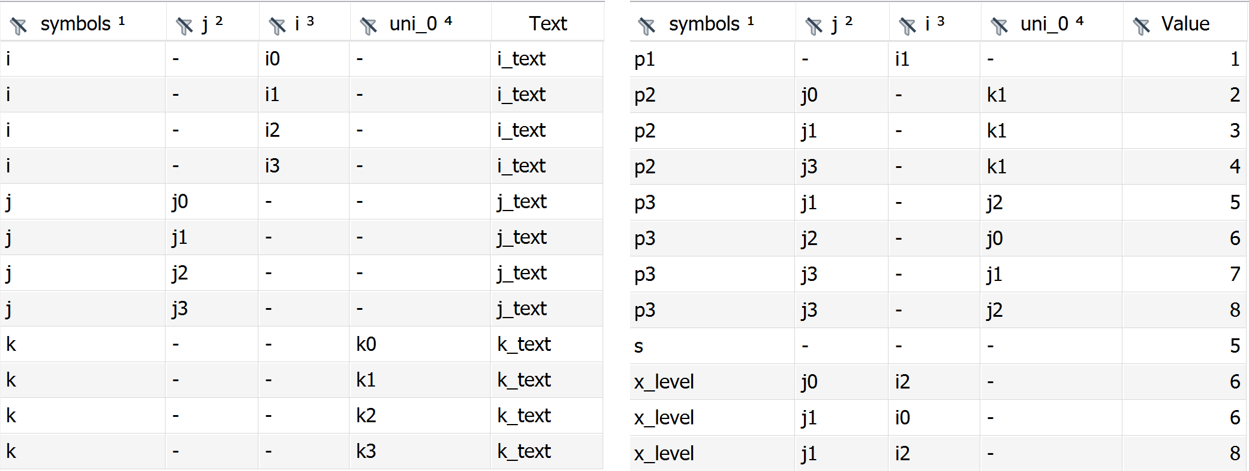

The resulting set and parameter outputs look as follows:

The following options are available for the Concatenate agent.

Option	Scope	Default	Description
dimensionMap	root	null	Define a mapping for the domain names of concatenated symbols as stored in the Connect database to the desired domain names.
emptyUel	root	-	Define a character to use for empty UELs.
name	symbols		Specify the name of the symbol with potentially index space.
newName	symbols	null	Specify a new name for the symbol in the symbols dimension of the output symbol.
outputDimensions	root	all	Define the dimensions of the output symbols.
parameterName	root	parameterOutput	Name of the parameter output symbol.
setName	root	setOutput	Name of the set output symbol.
skip	root	null	Indicate if sets or parameters should be skipped.
symbols	root	all	Specify symbol specific options.
symbolsDimension	root	True	Specify if output symbols should have a symbols dimension.
trace	root	0	Specify the trace level for debugging output.
universalDimension	root	uni	Specify the base name of universal dimensions.

Detailed description of the options:

dimensionMap: dictionary (default: null)

Define a mapping for domain names of concatenated symbols as stored in the Connect database to the desired domain names. For example, dimensionMap: {i: ij, j: ij} will map both symbol domains i and j to ij.

emptyUel: string (default: -)

Define a character to use for empty UELs.

name: string (required)

Specify the name of the symbol with potentially index space. Requires the format symName(i1,i2,...,iN). The index space may be specified to establish a mapping for the domain names of the symbol as stored in the Connect database to the desired domain names. If no index space is provided, the domain names stored in the Connect data are used and mapped via the dimensionMap option if provided.

newName: string (default: null)

Specify a new name for the symbol in the symbols dimension of the output symbol.

outputDimensions: all, list of strings (default: all)

Define the dimensions of the output symbols explicitly using a list, e.g. outputDimensions: [i,j]. The default all gets the domain sets from the concatenated symbols and builds the union with duplicates if required.

parameterName: string (default: parameterOutput)

Name of the parameter output symbol.

setName: string (default: setOutput)

Name of the set output symbol.

skip: set, par (default: null)

Indicate if sets or parameters should be skipped. Per default the agent takes both sets and parameters into account (if both are available via symbols) and generates a set and parameter output symbol with the same domain. If set is specified, the sets will be skipped, i.e. sets are not taken into account for setting up the domain and no set output symbol will be generated. If par is specified, the parameters will be skipped.

symbols: all, list of symbols (default: all)

A list containing symbol specific options. Allows to concatenate a subset of symbols. The default all concatenates all sets and parameters in the given database.

symbolsDimension: boolean (default: True)

Specify if output symbols should have a symbols dimension that contains the input symbol names. If True, the Concatenate agent adds a symbols dimension at the first index position. If False, no symbols dimension will be added.

trace: integer (default: 0)

Specify the trace level for debugging output:

• trace = 0: No trace output.
• trace > 0: Log instructions and Connect container status.
• trace > 1: Log additional scalar output.
• trace > 2: Log abbreviated intermediate DataFrames.
• trace > 3: Log entire intermediate DataFrames (potentially large output).

universalDimension: string (default: uni)

Specify the base name of universal dimensions.

CSVReader

The CSVReader allows reading a symbol (set or parameter) from a specified CSV file into the Connect database. Its implementation is based on the pandas.DataFrame class and its I/O API method read_csv. See getting started example for a simple example that uses the CSVReader.

Option	Default	Description
autoColumn	null	Generate automatic column names.
autoRow	null	Generate automatic row labels.
decimalSeparator	. (period)	Specify a decimal separator.
fieldSeparator	, (comma)	Specify a field separator.
file		Specify a CSV file path.
header	infer	Specify the header(s) used as the column names.
indexColumns	null	Specify columns to use as the row labels.
indexSubstitutions	null	Dictionary used for substitutions in the index columns.
name		Specify a symbol name for the Connect database.
names	null	List of column names to use.
quoting	0	Control field quoting behavior.
readCSVArguments	null	Dictionary containing keyword arguments for the pandas.read_csv method.
skipRows	null	Specify the rows to skip or the number of rows to skip.
stack	infer	Stacks the column names to index.
thousandsSeparator	null	Specify a thousands separator.
trace	0	Specify the trace level for debugging output.
type	par	Control the symbol type.
valueColumns	null	Specify columns to get the values from.
valueSubstitutions	null	Dictionary used for substitutions in the value columns.

Detailed description of the options:

autoColumn: string (default: null)

Generate automatic column names. The autoColumn string is used as the prefix for the column label numbers. This option overrides the use of a header or names. However, if there is a header row, one must skip the row by enabling header or using skipRows.

autoRow: string (default: null)

Generate automatic row labels. The autoRow string is used as the prefix for the row label numbers. The generated unique elements will be used in the first index position shifting other elements to the right. Using autoRow can be helpful when there are no labels that can be used as unique elements but also to store entries that would be a duplicate entry without a unique row label.

decimalSeparator: string (default: .)

Specify a decimal separator, e.g. . (period) or , (comma).

fieldSeparator: string (default: ,)

Specify a field separator, e.g. , (comma), ; (semicolon), or \t (tab).

file: string (required)

Specify a CSV file path.

header: infer, boolean, list of integers (default: infer)

Specify the header(s) used as the column names. Default behavior is to infer the column names: if no names are passed the behavior is identical to header=True and column names are inferred from the first line of data, if column names are passed explicitly then the behavior is identical to header=False. Explicitly pass header=True to be able to replace existing names. Note that missing column names are filled with Unnamed: n (where n is the nth column (zero based) in the DataFrame). Hence, reading the CSV file:

,j1,
i1,1,2
i2,3,4
,5,6

results in the following 2-dimensional parameter:

            j1  Unnamed: 2

i1       1.000       2.000
i2       3.000       4.000

For a multi-row header, a list of integers can be passed providing the positions of the header rows in the data. Note that reading multi-row header is only supported for parameters. Moreover, the CSVReader can only read all columns and not a subset of columns, wherefore only indexColumns can be specified and all other columns will automatically be read as valueColumns. Note that indexColumns can not be provided as column names together with a multi-row header. autoRow and autoColumn will be ignored in case of a multi-row header. Here is an example how to read data with a multi-row header:

$onecho > multirow_header.csv
j,,j1,j1,j1,j2,j2,j2
k,,k1,k2,k3,k1,k2,k3
h,i,,,,,,
h1,i1,1,2,,4,5,6
h1,i2,,,3,4,5,
$offEcho

$onEmbeddedCode Connect:
- CSVReader:
    file: multirow_header.csv
    name: p
    header: [1,2]
    indexColumns: [1,2]
- PythonCode:
    code: |
        print(connect.container["p"].records)
$offEmbeddedCode

The same can be achieved if the data has no index column names:

j,,j1,j1,j1,j2,j2,j2
k,,k1,k2,k3,k1,k2,k3
h1,i1,1,2,,4,5,6
h1,i2,,,3,4,5,

If the first line of data after the multi-row header has no data in the valueColumns, the CSVReader will interpret this line as index column names.

indexColumns: integer, string, list of integers, list of strings (default: null)

Specify columns to use as the row labels. The columns can either be given as column positions or column names. Column positions can be represented as an integer, a list of integers or a string. For example: indexColumns: 1, indexColumns: [1, 2, 3, 4, 6] or indexColumns: "1:4, 6". The symbolic constant lastCol can be used with the string representation: "2:lastCol". If no header or names is provided, lastCol will be determined by the first line of data. Column names can be represented as a list of strings. For example: indexColumns: ["i1","i2"]. Note that indexColumns and valueColumns must either be given as positions or names not both. Further note that indexColumns as column names are not supported together with a multi-row header.

By default the pandas.read_csv method interprets the following indices as NaN: "", "#N/A", "#N/A N/A", "#NA", "-1.#IND", "-1.#QNAN", "-NaN", "-nan", "1.#IND", "1.#QNAN", "<NA>", "N/A", "NA", "NULL", "NaN", "n/a", "nan", "null". The default can be changed by specifying pandas.read_csv arguments keep_default_na and na_value via readCSVArguments. Rows with indices that are interpreted as NaN will be dropped automatically. The indexSubstitutions option allows to map NaN entries in the index columns.

indexSubstitutions: dictionary (default: null)

Dictionary used for substitutions in the index columns. Each key in indexSubstitutions is replaced by its corresponding value. This option allows arbitrary replacements in the index columns of the DataFrame including stacked column names. Consider the following CSV file:

i1,j1,2.5
i1,,1.7
i2,j1,1.8
i2,,1.4

Reading this data into a 2-dimensional parameter results in a parameter with NaN entries dropped:

            j1

i1       2.500
i2       1.800

By specifying indexSubstitutions: { .nan: j2 } we can substitute NaN entries by j2:

            j1          j2

i1       2.500       1.700
i2       1.800       1.400

name: string (required)

Specify a symbol name for the Connect database. Note that each symbol in the Connect database must have a unique name.

names: list of strings (default: null)

List of column names to use. If the file contains a header row, then you should explicitly pass header=True to override the column names. Duplicates in this list are not allowed.

quoting: 0, 1, 2, 3 (default: 0)

Control field quoting behavior. Use QUOTE_MINIMAL (0), QUOTE_ALL (1), QUOTE_NONNUMERIC (2) or QUOTE_NONE (3). QUOTE_NONNUMERIC (2) instructs the reader to convert all non-quoted fields to type float. QUOTE_NONE (3) instructs reader to perform no special processing of quote characters.

readCSVArguments: dictionary (default: null)

Dictionary containing keyword arguments for the pandas.read_csv method. Not all arguments of that method are exposed through the YAML interface of the CSVReader agent. By specifying readCSVArguments, it is possible to pass arguments directly to the pandas.read_csv method that is used by the CSVReader agent. For example, readCSVArguments: {keep_default_na: False, skip_blank_lines: False}.

skipRows: integer, list of integers (default: null)

Specify the rows to skip (list) or the number of rows to skip (integer). For example: skipRows: [1, 3] or skipRows: 5.

stack: infer, boolean (default: infer)

If True, stacks the column names to index. With the default infer, stack will be set to True if there is more than one value column, otherwise False. Note that missing column names are filled with Unnamed: n (where n is the nth column (zero based) in the DataFrame).

thousandsSeparator: string (default: null)

Specify a thousands separator.

trace: integer (default: 0)

Specify the trace level for debugging output:

• trace = 0: No trace output.
• trace > 0: Log instructions and Connect container status.
• trace > 1: Log additional scalar output.
• trace > 2: Log abbreviated intermediate DataFrames.
• trace > 3: Log entire intermediate DataFrames (potentially large output).

type: par, set (default: par)

Control the symbol type. Supported symbol types are par for parameters and set for sets.

valueColumns: integer, string, list of integers, list or strings (default: null)

Specify columns to get the values from. The value columns contain numerical values in case of a GAMS parameter and set element text in case of a GAMS set. Note that specifying valueColumns is required for parameters (except for parameter data with a multi-row header). The columns can be given as column positions or column names. Column positions can be represented as an integer, a list of integers or a string. For example: valueColumns: 1, valueColumns: [1, 2, 3, 4, 6] or valueColumns: "1:4, 6". The symbolic constant lastCol can be used with the string representation: "2:lastCol". If no header or names is provided, lastCol will be determined by the first line of data. Column names can be represented as a list of strings. For example: valueColumns: ["i1","i2"]. Note that valueColumns and indexColumns must either be given as positions or names not both.

By default the pandas.read_csv method interprets the following values as NaN: "", "#N/A", "#N/A N/A", "#NA", "-1.#IND", "-1.#QNAN", "-NaN", "-nan", "1.#IND", "1.#QNAN", "<NA>", "N/A", "NA", "NULL", "NaN", "n/a", "nan", "null". The default can be changed by specifying pandas.read_csv arguments keep_default_na and na_value via readCSVArguments. Rows with values that are interpreted as NaN will be dropped automatically. Changing the default of values that are interpreted as NaN is useful if, e.g. "NA" values should not be dropped but interpreted as GAMS special value NA. Moreover, the valueSubstitutions option allows to map NaN entries in the value columns.

valueSubstitutions: dictionary (default: null)

Dictionary used for substitutions in the value column. Each key in valueSubstitutions is replaced by its corresponding value. The replacement is only performed on the values which is the numerical value in case of a GAMS parameter and the set element text in case of a GAMS set. While it is possible to make arbitrary replacements this is especially useful for controlling sparse/dense reading. All NaN entries are removed automatically by default which results in a sparse reading behavior. Consider the following CSV file:

i1,j1,
i1,j2,1.7
i2,j1,
i2,j2,1.4

Reading this data into a 2-dimensional parameter results in a sparse parameter with all NaN entries removed:

            j2

i1       1.700
i2       1.400

By specifying valueSubstitutions: { .nan: EPS } we get a dense representation where all NaN entries are replaced by GAMS special value EPS:

            j1          j2

i1         EPS       1.700
i2         EPS       1.400

Beside EPS there are the following other GAMS special values that can be used by specifying their string representation: INF, -INF, EPS, NA, and UNDEF. See the GAMS Transfer documentation for more information.

Let's assume we have data representing a GAMS set:

i1,text1
i2,
i3,text3

Reading this data into a 1-dimensional set results in a sparse set in which all NaN entries (those that do not have any set element text) are removed:

'i1' 'text 1',
'i3' 'text 3'

By specifying valueSubstitutions: { .nan: '' } we get a dense representation:

'i1' 'text 1',
'i2',
'i3' 'text 3'

It is also possible to use valueSubstitutions in order to interpret the set element text. Let's assume we have the following CSV file:

,j1,j2,j3
i1,Y,Y,Y
i2,Y,Y,N
i3,0,Y,Y

Reading this data into a 2-dimensional set results in a dense set:

'i1'.'j1' Y,
'i1'.'j2' Y,
'i1'.'j3' Y,
'i2'.'j1' Y,
'i2'.'j2' Y,
'i2'.'j3' N,
'i3'.'j1' 0,
'i3'.'j2' Y,
'i3'.'j3' Y

By specifying valueSubstitutions: { 'N': .nan, '0': .nan } we replace all occurrences of N and 0 by NaN which gets dropped automatically:

'i1'.'j1' Y,
'i1'.'j2' Y,
'i1'.'j3' Y,
'i2'.'j1' Y,
'i2'.'j2' Y,
'i3'.'j2' Y,
'i3'.'j3' Y

CSVWriter

The CSVWriter allows writing a symbol (set or parameter) in the Connect database to a specified CSV file. Variables and equations need to be turned into parameters with the Projection agent before they can be written. See getting started example for a simple example that uses the CSVWriter.

Option	Default	Description
decimalSeparator	. (period)	Specify a decimal separator.
file		Specify a CSV file path.
fieldSeparator	, (comma)	Specify a field separator.
header	True	Indicate if the header will be written.
name		Specify the name of the symbol in the Connect database.
quoting	0	Control field quoting behavior.
setHeader	null	Specify a string that will be used as the header.
skipText	False	Indicate if the set element text will be skipped.
toCSVArguments	null	Dictionary containing keyword arguments for the pandas.to_csv method.
trace	0	Specify the trace level for debugging output.
unstack	False	Specify the dimensions to be unstacked to the header row(s).
valueSubstitutions	null	Dictionary used for mapping in the value column of the DataFrame.

Detailed description of the options:

decimalSeparator: string (default: .)

Specify a decimal separator, e.g. . (period) or , (comma).

Note

Changing the decimal separator (e.g. to ,) will have no effect if the value column contains non-numerical values. This can be the case if either numerical values are replaced with strings using valueSubstitutions or in case of special values which get translated into strings by default.

file: string (required)

Specify a CSV file path.

fieldSeparator: string (default: ,)

Specify a field separator, e.g. , (comma), ; (semicolon), or \t (tab).

header: boolean (default: True)

Indicate if the header will be written.

name: string (required)

Specify the name of the symbol in the Connect database.

quoting: 0, 1, 2, 3 (default: 0)

Control field quoting behavior. Use QUOTE_MINIMAL (0), QUOTE_ALL (1), QUOTE_NONNUMERIC (2) or QUOTE_NONE (3). QUOTE_MINIMAL (0) instructs the writer to only quote those fields which contain special characters such as fieldSeparator. QUOTE_ALL (1) instructs the writer to quote all fields. QUOTE_NONNUMERIC (2) instructs the writer to quote all non-numeric fields. QUOTE_NONE (3) instructs the writer to never quote fields.

setHeader: string (default: null)

Specify a string that will be used as the header. If an empty header is desired, the string can be empty.

skipText: boolean (default: False)

Indicate if the set element text will be skipped. If False, the set element text will be written in the last column of the CSV file.

toCSVArguments: dictionary (default: null)

Dictionary containing keyword arguments for the pandas.to_csv method. Not all arguments of that method are exposed through the YAML interface of the CSVWriter agent. By specifying toCSVArguments, it is possible to pass arguments directly to the pandas.to_csv method that is used by the CSVWriter agent. For example, toCSVArguments: {index_label: ["index1", "index2", "index3"]}.

trace: integer (default: 0)

Specify the trace level for debugging output:

• trace = 0: No trace output.
• trace > 0: Log instructions and Connect container status.
• trace > 1: Log additional scalar output.
• trace > 2: Log abbreviated intermediate DataFrames.
• trace > 3: Log entire intermediate DataFrames (potentially large output).

unstack: boolean, list of integers (default: False)

Specify the dimensions to be unstacked to the header row(s). If False (default) no dimension will be unstacked to the header row. If True the last dimension will be unstacked to the header row. If multiple dimensions should be unstacked to header rows, a list of integers providing the dimension numbers to unstack can be specified.

valueSubstitutions: dictionary (default: null)

Dictionary used for mapping in the value column of the DataFrame. Each key in valueSubstitutions is replaced by its corresponding value. The replacement is only performed on the value column of the DataFrame which is the numerical value in case of a GAMS parameter and the set element text in case of a GAMS set. Note that for parameters the CSVWriter automatically converts numerical GAMS special values to their string representation, i.e. INF, -INF, EPS, NA, and UNDEF. If the GAMS special values should be replaced by custom values, use the string representation (upper case) in the dictionary. For example, specify {'EPS': 0} to replace GAMS special value EPS by zero. See the GAMS Transfer documentation for more information on GAMS special values.

DomainWriter

The DomainWriter agent allows to rewrite domain information for existing Connect symbols and helps dealing with domain violations.

Here is an example that uses the DomainWriter agent:

Set i / i1*i2 /, ii(i) / i1 /;

Parameter a(i) / i1 1, i2 2 /, b(i) / i1 1, i2 2 /;

$onEmbeddedCode Connect:
- GAMSReader:
    symbols: all
- DomainWriter:
    symbols:
      - name: a(ii)
        dropDomainViolations: after
      - name: b('ii')
- PythonCode:
    code: |
        print("Parameter a:\n", connect.container["a"].records)
        print("Parameter b:\n",connect.container["b"].records)
- GDXWriter:
    file: a_mod.gdx
    symbols: all
$offEmbeddedCode

In this example, the DomainWriter is used to modify the one-dimensional parameters a and b. For parameter a, a regular domain with domain set ii (a subset of set i) is established. Since parameter a still has the (i2 2.0) record, the parameter now contains a domain violation as i2 is not part of the new regular domain ii. While the Connect database in general can hold symbols with domain violations, this is not the case for GAMS or GDX. Since the symbols are later written to GDX, dropDomainViolations: after is specified instructing the DomainWriter to drop all domain violations after the new domain is applied. For parameter b, a relaxed domain 'ii' is established. This means that the universal domain * is established while using ii as the relaxed domain name. As the new domain is relaxed, no domain violations are introduced.

After the DomainWriter parameter a and b look as follows:

Set a:
    ii  value
0  i1    1.0

Set b:
    ii  value
0  i1    1.0
1  i2    2.0

Option	Scope	Default	Description
dropDomainViolations	root/symbols	False	Indicate how to deal with domain violations.
name	symbols		Specify the name of the symbol in the Connect database.
symbols	root	all	Specify symbol specific options.
trace	root	0	Specify the trace level for debugging output.

Detailed description of the options:

dropDomainViolations: after, before, boolean (default: False)

The Connect symbols might have some domain violations. This agent allows to drop these domain violations, so a write to GAMS or GDX works properly. Indicate how to deal with domain violations that can cause issues in GAMS or GDX. Per default domain violations will not be dropped. Setting dropDomainViolations to after will drop domain violations after a new domain is applied. Setting the option to before will drop domain violations before a new domain is applied. Setting the option to True will drop domain violations before and after a new domain is applied. The DomainWriter agent does not necessarily need to be used to rewrite domain information for specific symbols but can also handle domain violations for all symbols in the Connect database. With symbols: all and dropDomainViolations: True the agent drops domain violations from all symbols in the Connect database. In this case, after and before will have the same effect as True.

name: string (required)

Specify a symbol name with index space for the Connect database. name requires the format symName(i1,i2,...,iN). The list of indices needs to coincide with the names of the actual GAMS domain sets for a regular domain. A relaxed domain is set if the index is quoted. For example name: x(i,'j') means that for the first index a regular domain with domain set i is established, while for the second index the universal domain * is used and a relaxed domain name j is set.

symbols: all, list of symbols (default: all)

A list containing symbol specific options or all for applying the DomainWriter to all symbols in the Connect database.

trace: integer (default: 0)

Specify the trace level for debugging output:

• trace = 0: No trace output.
• trace > 0: Log instructions and Connect container status.
• trace > 1: Log additional scalar output.
• trace > 2: Log abbreviated intermediate DataFrames.
• trace > 3: Log entire intermediate DataFrames (potentially large output).

ExcelReader

The ExcelReader agent allows to read symbols (sets and parameters) from an Excel file into the Connect database. See getting started example for a simple example that uses the ExcelReader.

Note

The ExcelReader supports .xlsx and .xlsm files.

Option	Scope	Default	Description
autoMerge	root/symbols	False	Indicate if empty cells in the labels should be merged with previous cells.
columnDimension	root/symbols	1	Column dimension of the symbol.
file	root		Specify an Excel file path.
ignoreColumns	symbols	null	Columns to be ignored when reading.
ignoreRows	symbols	null	Rows to be ignored when reading.
ignoreText	root/symbols	infer	Indicate if the set element text should be ignored.
index	root		Specify the Excel range for reading symbols and options directly from the spreadsheet.
indexSubstitutions	root/symbols	null	Dictionary used for substitutions in the row and column index.
mergedCells	root/symbols	False	Control the handling of empty cells in the labels and the values that are part of a merged Excel range.
name	symbols		Specify the name of the symbol in the Connect database.
range	symbols	[name]!A1	Specify the Excel range of a symbol.
rowDimension	root/symbols	1	Row dimension of the symbol.
skipEmpty	root/symbols	1	Number of empty rows or columns to skip before the next empty row or column indicates the end of the block for reading with open ranges.
symbols	root		Specify symbol specific options.
trace	root	0	Specify the trace level for debugging output.
type	root/symbols	par	Control the symbol type.
valueSubstitutions	root/symbols	null	Dictionary used for mapping in the values.

Detailed description of the options: autoMerge: boolean (default: False)

Indicate if empty cells in the labels should be merged with previous cells. If True, each empty cell in the labels will be filled with the value of a previous cell that is not empty. This will resolve merged cells in the labels and will also fill empty cells in the labels that are not part of a merged cell. If the user wants to keep empty cells in the labels that are not part of a merged cell and still resolve merged cells, autoMerge needs to be set to False and mergedCells needs to be set to True.

columnDimension: integer (default: 1)

The number of rows in the data range that will be used to define the labels for columns. The first columnDimension rows of the data range will be used for labels.

file: string (required)

Specify an Excel file path.

ignoreColumns: integer, string, list of integers and strings (default: null)

Columns to be ignored when reading the file. They can be specified by any of the following methods:

• Single column: Use a single column number (e.g. ignoreColumns: 3) or letter (e.g. ignoreColumns: C).
• Ranges: Specify ranges in the format start:end. Ranges can include:
  • Integers (e.g. ignoreColumns: "2:6")
  • Letters (e.g. ignoreColumns: "B:F")
  • A mixture of both (e.g. ignoreColumns: "B:6")
• A list of columns: Include multiple column numbers, letters, and/or ranges (e.g. ignoreColumns: [2, "D", "7:10"]).

ignoreRows: integer, string, list of integers and strings> (default: null)

Specify rows to be ignored when reading. You can specify:

• Single row: Use a single row number (e.g. ignoreRows: 4).
• Ranges: Specify ranges in the format start:end. Ranges should only include integers (e.g. ignoreRows: "2:6").
• A list of rows: Include multiple row numbers and/or ranges (e.g. ignoreRows: [2, 5, "7:10"].)

ignoreText: infer, boolean (default: infer)

Indicate if the set element text should be ignored. With the default infer the set element text will be ignored based on the specification of range and columnDimension/rowDimension. If either columnDimension or rowDimension is set to 0 and an open range is specified, the set element text will be ignored. If either columnDimension or rowDimension is set to 0 and a full range is specified, the set element text will be ignored if it is not included in the range specification. In all other cases the set element text will not be ignored.

index: string (required: index or symbols) (excludes: symbols)

Specify the Excel range for reading symbols options directly from the spreadsheet similar to GDXXRWs index option. The general structure of an index sheet follows roughly the rules of GDXXRW, but there are also options that are either not supported at all or work differently.

• Supported options:
  • rdim/rowDimension
  • cdim/columnDimension
  • se/skipEmpty
  • ignoreText
  • autoMerge
  • ignoreRows
  • ignoreColumns
  • mergedCells
• All supported options are processed case insensitive.
• All unsupported options are ignored.
• Since there is no support for dSet, the ExcelReader will process such symbols as set. The duplicateRecords option of the GAMSWriter or GDXWriter can be used to get rid of potential duplicate records. Alternatively the Projection agent with an appropriate aggregationMethod can be used.
• No support for dim but rDim/rowDimension and cDim/columnDimension only.
• Missing values for rDim/rowDimension and cDim/columnDimension will not have the GDXXRW defaults but will use the root-scoped values of rowDimension and columnDimension. When migrating from GDXXRW to Connect it is best to explicitly specify those values in the index sheet instead of relying on default value.
• Per default GDXXRW does not store zeros, but the ExcelReader does. In order to change this, one has to specify valueSubstitutions: {0: .nan} in the root scope which will drop all records with value 0.

This option can not be specified together with symbols.

indexSubstitutions: dictionary (default: null)

Dictionary used for substitutions in the row and column index. Each key in indexSubstitutions is replaced by its corresponding value. This option allows arbitrary replacements in the index. Consider the following Excel spreadsheet:

Two dimensional data containing NaN entries in the index

Reading this data into a 2-dimensional parameter results in a parameter with NaN entries dropped:

            j1

i1       1.000
i2       3.000

By specifying indexSubstitutions: { .nan: j2 } we can substitute NaN entries by j2:

            j1          j2

i1       1.000       2.000
i2       3.000       4.000

mergedCells: boolean (default: False)

Control the handling of empty cells that are part of a merged Excel range. The option applies to merged cells in the labels and the values, i.e. the numerical values in case of a GAMS parameter and the set element text in case of a GAMS set. If False, the cells are left empty. If True, the merged label/value is used in all cells. Note that setting this option to True has an impact on performance since the Excel file has to be opened in a non-read-only mode that results in non-constant memory consumption (no lazy loading). From the performance perspective, autoMerge should be preferred over mergedCells if applicable.

name: string (required)

Specify a symbol name for the Connect database. Note that each symbol in the Connect database must have a unique name.

range: string (default: [name]!A1)

Specify the Excel range of a symbol using the format sheetName!cellRange. cellRange can be either a single cell also known as an open range (north-west corner like B2) or a full range (north-west and south-east corner like B2:D4). Per default the ExcelReader uses the range [name]!A1, where [name] is the name of the symbol that is read. If only sheetName! is specified, the ExcelReader will use an open range starting at cell A1. The ExcelReader also allows for named ranges - a named range includes a sheet name and a cell range. Before interpreting the provided range attribute, the string will be used to search for a pre-defined Excel range with that name.

rowDimension: integer (default: 1)

The number of columns in the data range that will be used to define the labels for the rows. The first rowDimension columns of the data range will be used for the labels.

skipEmpty: integer (default: 1)

Number of empty rows or columns to skip before the next empty row or column indicates the end of the block for reading with open ranges. If a full range is specified skipEmpty will be ignored.

symbols: list of symbols (required: index or symbols) (excludes: index)

A list containing symbol specific options.

This option can not be specified together with index.

trace: integer (default: 0)

Specify the trace level for debugging output:

• trace = 0: No trace output.
• trace > 0: Log instructions and Connect container status.
• trace > 1: Log additional scalar output.
• trace > 2: Log abbreviated intermediate DataFrames.
• trace > 3: Log entire intermediate DataFrames (potentially large output).

type: par, set (default: par)

Control the symbol type. Supported symbol types are par for parameters and set for sets.

valueSubstitutions: dictionary (default: null)

Dictionary used for substitutions in the value column. Each key in valueSubstitutions is replaced by its corresponding value. The replacement is only performed on the values which is the numerical value in case of a GAMS parameter and the set element text in case of a GAMS set. While it is possible to make arbitrary replacements, this is especially useful for controlling sparse/dense reading. All NaN entries are removed automatically by default which results in a sparse reading behavior. Let's assume we have the following spreadsheet:

Two dimensional data containing NaN entries

Reading this data into a 2-dimensional parameter results in a sparse parameter in which all NaN entries are removed:

'i1'.'j1' 2.5,
'i1'.'j2' 1.7,
'i2'.'j2' 1.8,
'i2'.'j3' 1.4

By specifying valueSubstitutions: { .nan: EPS } we get a dense representation in which all NaN entries are replaced by GAMS special value EPS:

'i1'.'j1' 2.5,
'i1'.'j2' 1.7,
'i1'.'j3' Eps,
'i2'.'j1' Eps,
'i2'.'j2' 1.8,
'i2'.'j3' 1.4

Beside EPS there are the following other GAMS special values that can be used by specifying their string representation: INF, -INF, EPS, NA, and UNDEF. See the GAMS Transfer documentation for more information.

Let's assume we have data representing a GAMS set:

Data representing a GAMS set

Reading this data into a 1-dimensional set results in a sparse set in which all NaN entries (those that do not have any set element text) are removed:

'i1' 'text 1',
'i3' 'text 3'

By specifying valueSubstitutions: { .nan: '' } we get a dense representation:

'i1' 'text 1'
'i2' ''
'i3' 'text 3'

It is also possible to use valueSubstitutions in order to interpret the set element text. Let's assume we have the following Excel data:

Data representing a GAMS set

Reading this data into a 2-dimensional set results in a dense set:

'i1'.'j1' No,
'i1'.'j2' Y,
'i1'.'j3' Y,
'i2'.'j1' Y,
'i2'.'j2' Y,
'i2'.'j3' Y,
'i3'.'j1' Y,
'i3'.'j2' Y,
'i3'.'j3' N

By specifying valueSubstitutions: { 'N': .nan, 'No': .nan } we replace all occurrences of N and No by NaN which gets dropped automatically. Note that No has to be quotes in order to not be interpreted as False by the YAML parser:

'i1'.'j2' Y,
'i1'.'j3' Y,
'i2'.'j1' Y,
'i2'.'j2' Y,
'i2'.'j3' Y,
'i3'.'j1' Y,
'i3'.'j2' Y

ExcelWriter

The ExcelWriter agent allows to write symbols (sets and parameters) from the Connect database to an Excel file. Variables and equations need to be turned into parameters with the Projection agent before they can be written. If the Excel file exists, the ExcelWriter appends to the existing file. See getting started example for a simple example that uses the ExcelWriter.

Note

The ExcelWriter only supports .xlsx files.

Attention

Please be aware of the following limitation when appending to an Excel file with formulas using the ExcelWriter: Whereas Excel stores formulas and the corresponding values, the ExcelReader and the ExcelWriter read/store either formulas or values, not both. As a consequence, when appending to an Excel file with formulas, all cells with formulas within the Excel file will not have values anymore and a subsequent read by the ExcelReader results into NaN for these cells. To avoid this, write to a separate output Excel file. On Windows one can merge the input Excel file with the output Excel file at the end using the tool win32.ExcelMerge (see Connect Example for Excel (executeTool win32.ExcelMerge)). An alternative approach when appending to an Excel file with formulas is to open and save the Excel file before reading it to let Excel evaluate formulas and restore the corresponding values.

Option	Scope	Default	Description
clearSheet	root/symbols	False	Indicate if a sheet should be cleared before writing if it exists.
columnDimension	root/symbols	infer	Column dimension of the symbol.
file	root		Specify an Excel file path.
index	root	null	Specify the Excel range for reading symbols and options directly from the spreadsheet.
mergedCells	root/symbols	False	Write merged cells.
name	symbols		Specify the name of the symbol in the Connect database.
range	symbols	[name]!A1	Specify the Excel range of a symbol.
sheetName	tableOfContents	Table Of Contents	Specify the sheet name containing the table of contents.
sort	tableOfContents	False	Controls if symbol names in the table of contents are sorted alphabetically.
symbols	root	all	Specify symbol specific options.
tableOfContents	root	False	Controls the writing of a table of contents.
trace	root	0	Specify the trace level for debugging output.
valueSubstitutions	root/symbols	null	Dictionary used for mapping in the value column of the DataFrame.

Detailed description of the options:

clearSheet: boolean (default: False)

Indicate if a sheet should be cleared before writing if it exists. The default is False where a sheet will not be cleared if it exists, instead the ExcelWriter overwrites, i.e. writes content to the sheet without removing the existing content.

columnDimension: infer, integer (default: infer)

The last columnDimension index positions of the symbol that will be written to the rows that define the labels of the columns. The first dim-columnDimension index positions will be written to the columns that define the labels for the rows. With the default infer, columnDimension will be set to 1 if dim>0 and otherwise to 0.

file: string (required)

Specify an Excel file path.

index: string (default: null)

Specify the Excel range for reading symbols options directly from the spreadsheet similar to GDXXRWs index option. If specified, symbols is ignored. The general structure of an index sheet follows roughly the rules of GDXXRW, but there are also options that are either not supported at all or work differently.

• Supported options:
  • cdim/columnDimension
  • mergedCells
  • clearSheet
• All supported options are processed case insensitive.
• All unsupported options are ignored.
• No support for dim but and rDim/rowDimension but cDim/columnDimension only.
• Missing value for cDim/columnDimension will use the root-scoped value of columnDimension. When migrating from GDXXRW to Connect it is best to explicitly specify this value in the index sheet instead of relying on the default value.

mergedCells: boolean (default: False)

Write merged cells. Please be aware that overwriting already existing merged cells in a sheet may cause problems, in that case consider setting clearSheet to True.

name: string (required)

Specify a symbol name for the Connect database.

range: string (default: [name]!A1)

Specify the Excel range of a symbol using the format sheetName!cellRange. cellRange can be either a single cell (north-west corner like B2) or a full range (north-west and south-east corner like B2:D4). Per default the ExcelWriter uses the range [name]!A1, where [name] is the name of the symbol that is written. If only sheetName! is specified, the ExcelWriter will use an open range starting at cell A1. The ExcelWriter also allows for named ranges - a named range includes a sheet name and a cell range. Before interpreting the provided range attribute, the string will be used to search for a pre-defined Excel range with that name.

sheetName: string (default: Table Of Contents)

Specify the sheet name which will contain the table of contents.

sort: boolean (default: False)

If True the table of contents is sorted by symbol name in alphabetical order. If False the order is determined from the order given in symbols or the order of symbols in the Connect database in case symbols: all.

symbols: all, list of symbols (default: all)

A list containing symbol specific options. The default all writes each parameter and set into a separate sheet using the range [name]!A1. If specified, index takes precedence over symbols.

tableOfContents: boolean, dictionary (default: False)

If True writes a table of contents into sheet Table Of Contents. If a dictionary is provided, valid keys are sheetName and sort. The sheet used for the table of contents is always cleared before writing.

trace: integer (default: 0)

Specify the trace level for debugging output:

• trace = 0: No trace output.
• trace > 0: Log instructions and Connect container status.
• trace > 1: Log additional scalar output.
• trace > 2: Log abbreviated intermediate DataFrames.
• trace > 3: Log entire intermediate DataFrames (potentially large output).

valueSubstitutions: dictionary (default: null)

Dictionary used for mapping in the value column of the DataFrame. Each key in valueSubstitutions is replaced by its corresponding value. The replacement is only performed on the value column of the DataFrame which is the numerical value in case of a GAMS parameter and the set element text in case of a GAMS set. Note that for parameters the ExcelWriter automatically converts numerical GAMS special values to their string representation, i.e. INF, -INF, EPS, NA, and UNDEF. If the GAMS special values should be replaced by custom values, use the string representation (upper case) in the dictionary. For example, specify {'EPS': 0} to replace GAMS special value EPS by zero. See the GAMS Transfer documentation for more information on GAMS special values.

Filter

The Filter agent allows to reduce symbol data by applying filters on labels and numerical values. Here is an example that uses the Filter agent:

Set i / seattle, san-diego /
    j / new-york, chicago, topeka /;

Parameter d(i,j) /
seattle.new-york   2.5
seattle.chicago    1.7
seattle.topeka     1.8
san-diego.new-york 2.5
san-diego.chicago  1.8
san-diego.topeka   1.4
/;

$onEmbeddedCode Connect:
- GAMSReader:
    symbols:
      - name: d
- Filter:
    name: d
    newName: d_new
    labelFilters:
      - dimension: 1
        keep: ['seattle']
      - dimension: 2
        reject: ['topeka']
    valueFilters:
      - rule: x<2.5
- GDXWriter:
    file: report.gdx
    symbols:
      - name: d_new
$offEmbeddedCode

The records of the parameter d are filtered and stored in a new parameter called d_new. Two label filters remove all labels except seattle from the first dimension and remove the label topeka from the second one. The remaining records are filtered by value where only values less than 2.5 are kept in the data. The resulting parameter d_new which is exported into report.gdx has only one record (seattle.chicago 1.7) left.

The following options are available for the Filter agent:

Option	Scope	Default	Description
attribute	valueFilters	all	Specify the attribute to which a value filter is applied.
dimension	labelFilters	all	Specify the dimension to which a label filter is applied.
keep	labelFilters		Specify a list of labels to keep.
labelFilters	root	null	Specify filters for index columns of a symbol.
name	root		Specify a symbol name for the Connect database.
newName	root	null	Specify a new name for the symbol in the Connect database.
regex	labelFilters		Specify a regular expression to be used for filtering labels.
reject	labelFilters		Specify a list of labels to reject.
rejectSpecialValues	valueFilters	null	Specify the special values to reject.
rule	valueFilters	null	Specify a boolean expression to be used for filtering on numerical columns.
ruleIdentifier	valueFilters	x	The identifier used for the value filter rule.
trace	root	0	Specify the trace level for debugging output.
valueFilters	root	null	Specify filters for numerical columns of a symbol.

Detailed description of the options:

attribute: all, value, level, marginal, upper, lower, scale (default: all)

Used to specify the attribute to which a value filter is applied. The following strings are allowed depending on the symbol type:

• Set: Not allowed
• Parameter: all (default), value
• Variable and equation: all (default), level, marginal, upper, lower, scale

The default all will apply the value filter on all value columns of the symbol.

dimension: all, integer (default: all)

Used to specify the dimension to which a label filter is applied. The default all will apply the label filter on all dimensions of the symbol.

keep: list of strings (required: keep or regex or reject) (excludes: regex, reject)

A list of labels to be kept when applying the label filter.

This option can not be specified together with regex or reject.

labelFilters: list of label filters (default: null)

A list containing label filters.

name: string (required)

Specify the name of the symbol from the Connect database on whose data the filters will be applied.

newName: string (default: null)

Specify a new name for the symbol in the Connect database which will get the data after all filters have been applied. Each symbol in the Connect database must have a unique name.

regex: string (required: keep or regex or reject) (excludes: keep, reject)

A string containing a regular expression that needs to match in order to keep the corresponding label. Uses a full match paradigm which means that the whole label needs to match the specified regular expression.

This option can not be specified together with keep or reject.

reject: string (required: keep or regex or reject) (excludes: keep, regex)

A list of labels to be rejected when applying the label filter.

This option can not be specified together with keep or regex.

rejectSpecialValues: EPS, +INF, -INF, UNDEF, NA, list of special values (default: null)

Can be used to reject single special values, e.g. rejectSpecialValues: EPS, or a list of special values, e.g. rejectSpecialValues: [EPS, UNDEF, -INF]. The following string representation of the GAMS special values must be used: INF, -INF, EPS, NA and UNDEF.

rule: string (default: null)

Used to specify a boolean expression for a value filter. Each numerical value of the specified dimension is tested and the corresponding record is only kept if the expression evaluates to true. The string needs to contain Python syntax that is valid for pandas.Series. Comparison operators like >, >=, <, <=, ==, or != can be used in combination with boolean operators like & or |, but not and or or. Note that using & or | requires the operands to be enclosed in round brackets in order to form a valid expression. As an example, the expression ((x<=10) & (x>=0)) | (x>20) would keep only those values that are between 0 and 10 (included) or greater than 20.

ruleIdentifier: string (default: x)

Specifies the identifier that is used in the rule of a value filter.

trace: integer (default: 0)

Specify the trace level for debugging output:

• trace = 0: No trace output.
• trace > 0: Log instructions and Connect container status.
• trace > 1: Log additional scalar output.
• trace > 2: Log abbreviated intermediate DataFrames.
• trace > 3: Log entire intermediate DataFrames (potentially large output).

valueFilters: list of value filters (default: null)

A list containing value filters.

GAMSReader

The GAMSReader allows reading symbols from the GAMS database into the Connect database. Without GAMS context (e.g. when running the gamsconnect script from the command line) this agent is not available and its execution will result in an exception.

The GAMSReader allows to either read all symbols from the GAMS database:

- GAMSReader:
    symbols: all

Or specific symbols only:

- GAMSReader:
    symbols:
      - name: i
      - name: p
        newName: p_new

Option	Scope	Default	Description
name	symbols		Specify the name of the symbol in the GAMS database.
newName	symbols	null	Specify a new name for the symbol in the Connect database.
symbols	root	all	Specify symbol specific options.
trace	root	0	Specify the trace level for debugging output.

Detailed description of the options:

name: string (required)

Specify the name of the symbol in the GAMS database.

newName: string (default: null)

Specify a new name for the symbol in the Connect database. Each symbol in the Connect database must have a unique name.

symbols: all, list of symbols (default: all)

A list containing symbol specific options. Allows to read a subset of symbols. The default all reads all symbols from the GAMS database into the Connect database.

trace: integer (default: 0)

Specify the trace level for debugging output:

• trace = 0: No trace output.
• trace > 0: Log instructions and Connect container status.
• trace > 1: Log additional scalar output.
• trace > 2: Log abbreviated intermediate DataFrames.
• trace > 3: Log entire intermediate DataFrames (potentially large output).

GAMSWriter

The GAMSWriter allows writing symbols in the Connect database to the GAMS database. Without GAMS context (e.g. when running the gamsconnect script from the command line) and as part of the connectOut command line option this agent is not available and its execution will result in an exception.

The GAMSWriter allows to either write all symbols in the Connect database to the GAMS database:

- GAMSWriter:
    symbols: all

Or specific symbols only:

- GAMSWriter:
    symbols:
      - name: i
      - name: p
        newName: p_new

Option	Scope	Default	Description
domainCheckType	root/symbols	default	Specify if domain checking is applied or if records that would cause a domain violation are filtered.
duplicateRecords	root/symbols	all	Specify which record(s) to keep in case of duplicate records.
mergeType	root/symbols	default	Specify if data in a GAMS symbol is merged or replaced.
name	symbols		Specify the name of the symbol in the Connect database.
newName	symbols	null	Specify a new name for the symbol in the GAMS database.
symbols	root	all	Specify symbol specific options.
trace	root	0	Specify the trace level for debugging output.

Detailed description of the options:

domainCheckType: checked, default, filtered (default: default)

Specify if Domain Checking is applied (checked) or if records that would cause a domain violation are filtered (filtered). If left at default it depends on the setting of $on/offFiltered if GAMS does a filtered load or checks the domains during compile time. During execution time default is the same as filtered.

duplicateRecords: all, first, last, none (default: all)

A symbol in the Connect database can hold multiple records for the same indexes. Such duplicate records are only a problem when exchanging the data with GAMS (and GDX). The attribute determines which record(s) to keep in case of (case insensitive) duplicate records. With the default of all the GAMSWriter will fail in case duplicate records exist. With first the first record will be written to GAMS, with last the last record will be written to GAMS. With none none of the duplicate records will be written to GAMS. Note that the agent deals with duplicate records in a case insensitive way.

mergeType: default, merge, replace (default: default)

Specify if data in a GAMS symbol is merged (merge) or replaced (replace). If left at default it depends on the setting of $on/offMulti[R] if GAMS does a merge, replace, or triggers an error during compile time. During execution time default is the same as merge.

name: string (required)

Specify the name of the symbol in the Connect database.

newName: string (default: null)

Specify a new name for the symbol in the GAMS database. Note, each symbol in the GAMS database must have a unique name.

symbols: all, list of symbols (default: all)

A list containing symbol specific options. Allows to write a subset of symbols. The default all writes all symbols from the Connect database into the GAMS database. Symbols that do not exist in the GAMS database are skipped. Symbols that exist but have different symbol types in the Connect and GAMS database will raise an error.

trace: integer (default: 0)

Specify the trace level for debugging output:

• trace = 0: No trace output.
• trace > 0: Log instructions and Connect container status.
• trace > 1: Log additional scalar output.
• trace > 2: Log abbreviated intermediate DataFrames.
• trace > 3: Log entire intermediate DataFrames (potentially large output).

GDXReader

The GDXReader allows reading symbols from a specified GDX file into the Connect database.

The GDXReader allows to either read all symbols from a GDX file:

- GDXReader:
    file: in.gdx
    symbols: all

Or specific symbols only:

- GDXReader:
    file: in.gdx
    symbols:
      - name: i
      - name: p
        newName: p_new

Option	Scope	Default	Description
file	root		Specify a GDX file path.
name	symbols		Specify the name of the symbol in the GDX file.
newName	symbols	null	Specify a new name for the symbol in the Connect database.
symbols	root	all	Specify symbol specific options.
trace	root	0	Specify the trace level for debugging output.

Detailed description of the options:

file: string (required)

Specify a GDX file path.

name: string (required)

Specify the name of the symbol in the GDX file.

newName: string (default: null)

Specify a new name for the symbol in the Connect database. Each symbol in the Connect database must have a unique name.

symbols: all, list of symbols (default: all)

A list containing symbol specific options. Allows to read a subset of symbols. The default all reads all symbols from the GDX file into the Connect database.

trace: integer (default: 0)

Specify the trace level for debugging output:

• trace = 0: No trace output.
• trace > 0: Log instructions and Connect container status.
• trace > 1: Log additional scalar output.
• trace > 2: Log abbreviated intermediate DataFrames.
• trace > 3: Log entire intermediate DataFrames (potentially large output).

GDXWriter

The GDXWriter allows writing symbols in the Connect database to a specified GDX file.

The GDXWriter allows to either write all symbols in the Connect database to a GDX file:

- GDXWriter:
    file: out.gdx
    symbols: all

Or specific symbols only:

- GDXWriter:
    file: out.gdx
    symbols:
      - name: i
      - name: p
        newName: p_new

Option	Scope	Default	Description
duplicateRecords	root/symbols	all	Specify which record(s) to keep in case of duplicate records.
file	root		Specify a GDX file path.
name	symbols		Specify the name of the symbol in the Connect database.
newName	symbols	null	Specify a new name for the symbol in the GDX file.
symbols	root	all	Specify symbol specific options.
trace	root	0	Specify the trace level for debugging output.

Detailed description of the options:

duplicateRecords: all, first, last, none (default: all)

A symbol in the Connect database can hold multiple records for the same indexes. Such duplicate records are only a problem when exchanging the data with GDX (and GAMS). The attribute determines which record(s) to keep in case of (case insensitive) duplicate records. With the default of all the GDXWriter will fail in case duplicate records exist. With first the first record will be written to GDX, with last the last record will be written to GDX. With none none of the duplicate records will be written to GDX. Note that the agent deals with duplicate records in a case insensitive way.

file: string (required)

Specify a GDX file path.

name: string (required)

Specify the name of the symbol in the Connect database.

newName: string (default: null)

Specify a new name for the symbol in the GDX file. Note, each symbol in the GDX file must have a unique name.

symbols: all, list of symbols (default: all)

A list containing symbol specific options. Allows to write a subset of symbols. The default all writes all symbols from the Connect database into to the GDX file.

trace integer (default: 0)

Specify the trace level for debugging output:

• trace = 0: No trace output.
• trace > 0: Log instructions and Connect container status.
• trace > 1: Log additional scalar output.
• trace > 2: Log abbreviated intermediate DataFrames.
• trace > 3: Log entire intermediate DataFrames (potentially large output).

LabelManipulator

The LabelManipulator agent allows to modify labels of symbols in the Connect database. Four different modes are available:

• case: Applies either upper, lower, or capitalize casing to labels.
• code: Replaces labels using a Python code.
• map: Uses a 1-dimensional GAMS set to perform an explicit mapping of labels.
• regex: Performs a replacement based on a regular expression.

The LabelManipulator supports manipulating the labels of the entire symbol (default) or in a specific dimension by specifying the dimension option.

Here is an example that uses the LabelManipulator agent in all four modes:

Set i / seattle, san-diego /
    j / new-york, chicago, topeka /
    map / chicago 'Berlin', san-diego 'Oslo' /;

Parameter d(i,j) /
seattle.new-york   2.5
seattle.chicago    1.7
seattle.topeka     1.8
san-diego.new-york 2.5
san-diego.chicago  1.8
san-diego.topeka   1.4
/;

$onEmbeddedCode Connect:
- GAMSReader:
    symbols: all
- LabelManipulator:
    map:
        setName: map
- LabelManipulator:
    case:
        rule: upper
- LabelManipulator:
    symbols:
      - name: d
    code:
        rule: x.split('-')[-1]
- LabelManipulator:
    symbols:
      - name: d
    regex:
        pattern: '[^O]$'
        replace: '\g<0>X'
    dimension: 1
- PythonCode:
    code: |
        print("Set i:\n", connect.container["i"].records)
        print("Set j:\n",connect.container["j"].records)
        print("Parameter d:\n",connect.container["d"].records)
$offEmbeddedCode

In this example, various LabelManipulator agents are utilized to demonstrate different label manipulation capabilities:

• The first LabelManipulator uses the map mode to apply mappings defined in the GAMS set map across all symbols in the Connect database. Specifically, it maps the label chicago to Berlin and san-diego to Oslo, affecting all occurrences of these labels.
• The second LabelManipulator employs the case mode to convert all symbol labels in the database to uppercase. This modification is applied universally to every label across all symbols.
• The third LabelManipulator, configured in code mode, targets only the symbol d. It processes each label by splitting it at the hyphen (-) and retains only the last segment of the split. For instance, the label NEW-YORK is transformed to YORK.
• The last LabelManipulator, operating in regex mode and equipped with the dimension option set to 1, specifically alters labels in the first dimension of the symbol d (i.e. the i dimension in d(i,j)). It appends an X to labels in the first dimension that do not end with an O.

The resulting symbols look as follows:

Set i:
        uni element_text
0  SEATTLE
1     OSLO

Set j:
         uni element_text
0  NEW-YORK
1    BERLIN
2    TOPEKA

Parameter d:
           i       j   value
0  SEATTLEX    YORK    2.5
1  SEATTLEX  BERLIN    1.7
2  SEATTLEX  TOPEKA    1.8
3      OSLO    YORK    2.5
4      OSLO  BERLIN    1.8
5      OSLO  TOPEKA    1.4

The following options are available for the LabelManipulator agent:

Option	Scope	Default	Description
case	root		Apply specified casing to labels.
code	root		Replace labels using Python code.
dimension	root/symbols	all	Specify the dimension of the symbols for label manipulations.
invert	map	False	Used to invert the mapping direction.
map	root		Replace labels using a 1-dimensional GAMS set containing an explicit key-value mapping.
name	symbols		Specify a symbol name for the Connect database.
newName	symbols	null	Specify a new name for the symbol in the Connect database.
outputSet	regex/case/code	null	Name of the output set that contains the applied mapping.
pattern	regex		The regular expression that needs to match.
regex	root		Replace labels using a regular expression.
replace	regex		The rule used for replacing labels that match the given pattern.
rule	case/code		case: The type of casing to be applied. code: Python function that defines the mapping behavior.
ruleIdentifier	code	x	The identifier used for labels in the rule.
setName	map		The name of the GAMS set used in map mode.
symbols	root	all	Specify symbol specific options.
trace	root	0	Specify the trace level for debugging output.

Detailed description of the options:

case: dictionary (required: case or code or map or regex) (excludes: code, map, regex)

Used for executing the LabelManipulator in case mode to apply a specified casing to labels.

This option can not be specified together with code, map, or regex.

code: dictionary (required: case or code or map or regex) (excludes: case, map, regex)

Used for executing the LabelManipulator in code mode to replace labels using a Python function. The given Python function is executed with each label and its return value is used as the replacement.

This option can not be specified together with case, map, or regex.

dimension: all, integer (default: all)

Specifies the dimension of the symbol that the label manipulations will be applied to. The default all will apply manipulations to all dimensions of the symbol.

invert: boolean (default: False)

Used for controlling the mapping direction in map mode. If set to False (default), the labels that match a label of the provided 1-dimensional GAMS set are replaced by the corresponding set element text. If set to True the direction is inverted, meaning all labels that match a set element text of the GAMS set are replaced by the corresponding label.

map: dictionary (required: case or code or map or regex) (excludes: case, code, regex)

Used for executing the LabelManipulator in map mode to replace labels using a 1-dimensional GAMS set containing an explicit key-value mapping.

This option can not be specified together with case, code, or regex.

name: string (required)

Specify the name of the symbol in the GAMS database. Data of the symbol gets replaced if no newName is specified.

newName: string (default: null)

Specify a new name for the symbol in the Connect database. The original symbol specified under name remains unchanged. Each symbol in the Connect database must have a unique name.

outputSet: string (default: null)

Name of the output set that contains mappings that were actually applied on the symbol labels. Per default no output set is written. Providing a name for the output set indicates that an output set should be written to the Connect database. Note that each symbol in the Connect database must have a unique name. Supported by case, code and regex mode.

pattern: string (required)

The regular expression that needs to match for a label to be replaced.

regex: dictionary (required: case or code or map or regex) (excludes: case, code, map)

Used for executing the LabelManipulator in regex mode to replace labels using a regular expression.

This option can not be specified together with case, code, or map.

replace: string (required)

A string that specifies the replacement for all labels for which a given pattern in regex mode matches.

rule: string for code, capitalize, lower, upper for case (required)

Can be specified in case and code mode.

case: The type of casing to be applied. Allowed values are:

• lower: Change all labels to lower case.
• upper: Change all labels to upper case.
• capitalize: Change all labels to a capitalized casing - first letter becomes upper case, all others become lower case.

code: A Python function that defines the mapping behavior.

ruleIdentifier: string (default: x)

Specifies the identifier that is used in the rule of the code mode.

setName: string (required)

A 1-dimensional GAMS set that contains an explicit key-value mapping to replace labels. If invert: False (default) all labels that match a label of the GAMS set will be replaced by the corresponding set element text.

symbols: all, list of symbols (default: all)

A list containing symbol specific options. Allows to execute the LabelManipulator on a subset of GAMS symbols in the Connect database. The default all will apply the LabelManipulator to all symbols of the Connect database.

trace integer (default: 0)

Specify the trace level for debugging output:

• trace = 0: No trace output.
• trace > 0: Log instructions and Connect container status.
• trace > 1: Log additional scalar output.
• trace > 2: Log abbreviated intermediate DataFrames.
• trace > 3: Log entire intermediate DataFrames (potentially large output).

Projection

The Projection agent allows index reordering, projection onto a reduced index space, and expansion to an extended index space through index duplication of a GAMS symbol. It can combine these operations, allowing for complex transformations such as simultaneously duplicating some indices, eliminating others, and reordering (e.g., transforming p(i,j,k) to p_new(k,k,j)). For variables and equations a single suffix (.l, .m, .lo, .up, .scale, or .all) or a list of suffixes (e.g. .[l,m,lo,up,scale] or .[all]) can be extracted and written to a parameter. Otherwise, the type of the source symbol determines the type of the new symbol, unless asSet is set to True. If name is a list of scalar symbols of the same type (parameters, variables, or equations), they can be stored in a one-dimensional symbol of the same type with the index label being the name of the scalar symbol.

Here is an example that uses the Projection agent:

Set i / i1*i2 /, j / j1*j2 /;

Parameter
   p(i,j) / i1.j1 1, i1.j2 2, i2.j1 3, i2.j2 4 /
   s1 / 10 /
   s2 / 11 /
   s3 / 12 /;

Variable x(i,j);
x.l(i,j) = p(i,j);

embeddedCode Connect:
- GAMSReader:
    symbols: all
- Projection:
    # 1. reduce index space
    name: p(i,j)
    newName: p_reduced(i)
    aggregationMethod: sum
- Projection:
    # 2. reorder index space
    name: p(idx1,idx2)
    newName: p_reordered(idx2,idx1)
- Projection:
    # 3. Extend index space
    name: p(i,j)
    newName: p_extended(i,j,i)
- Projection:
    # 4. variable with single suffix
    name: x.l(i,j)
    newName: x_level(i,j)
- Projection:
    # 5. variable with all suffix
    name: x.all(i,j)
    newName: x_all(i)
    aggregationMethod: last
- Projection:
    # 6. parameter as set
    name: p(i,j)
    newName: p_set(i,j)
    asSet: True
    text: "from {i} to {j}"
- Projection:
    # 7. list of scalars
    name: [s1,s2,s3]
    newName: p_scalars
- PythonCode:
    code: |
        print("Parameter p_reduced:\n", connect.container["p_reduced"].records)
        print("Parameter p_reordered:\n", connect.container["p_reordered"].records)
        print("Parameter p_extended:\n", connect.container["p_extended"].records)
        print("Parameter x_level:\n", connect.container["x_level"].records)
        print("Parameter x_all:\n", connect.container["x_all"].records)
        print("Set p_set:\n", connect.container["p_set"].records)
        print("Parameter p_scalars:\n", connect.container["p_scalars"].records)
endEmbeddedCode

In this example, various Projection agents are utilized to demonstrate different projection capabilities:

1. The Projection agent is used to project parameter p to a reduced index space. Aggregation method sum is selected to aggregate records on the remaining index by taking the sum.

       Parameter p_reduced:
            i  value
       0  i1    3.0
       1  i2    7.0

2. The Projection agent is used to only reorder the index space of parameter p. Note that the list of indices specified under name and newName is solely intended to establish the index order for the new symbol and therefore does not need to coincide with the names of the actual GAMS domain sets.

       Parameter p_reordered:
            j   i  value
       0  j1  i1    1.0
       1  j2  i1    2.0
       2  j1  i2    3.0
       3  j2  i2    4.0

3. The Projection agent is used to project parameter p to an extended index space by duplicating index i. The new symbol has an additional index i with the same values as the original index i.

       Parameter p_extended:
          i_0 j_1 i_2   value
       0  i1  j1  i1    1.0
       1  i1  j2  i1    2.0
       2  i2  j1  i2    3.0
       3  i2  j2  i2    4.0

4. A single suffix (.l) turns the variable into a parameter with only the level values.

       Parameter x_level:
            i   j  value
       0  i1  j1    1.0
       1  i1  j2    2.0
       2  i2  j1    3.0
       3  i2  j2    4.0

5. The .all suffix turns the variable into a parameter with an additional index for the attributes. At the same time the index space is reduced using aggregation method last, i.e. only the last record is kept.

       Parameter x_all:
            i   level_1  value
       0  i1     level    2.0
       1  i1  marginal    0.0
       2  i1     lower   -inf
       3  i1     upper    inf
       4  i1     scale    1.0
       5  i2     level    4.0
       6  i2  marginal    0.0
       7  i2     lower   -inf
       8  i2     upper    inf
       9  i2     scale    1.0

6. The Projection agent is used to turn the parameter into a set (asSet: True) with custom text.

       Set p_set:
            i   j   element_text
       0  i1  j1  from i1 to j1
       1  i1  j2  from i1 to j2
       2  i2  j1  from i2 to j1
       3  i2  j2  from i2 to j2


7. A list of scalars is concatenated into a one-dimensional symbol where the index labels are the names of the scalar symbols.

       Parameter p_scalars:
          uni_0  value
       0    s1   10.0
       1    s2   11.0
       2    s3   12.0


Note that many of the Projection capabilities can be combined (e.g. reducing and reordering the index space of a variable while turning the symbol into a parameter using a suffix). The Projection agent can also be used to aggregate duplicate records according to the selected aggregation method.

Option	Default	Description
aggregationMethod	null	Specify the aggregation method for the projection.
asSet	False	Indicate that the new symbol is a set independent of the type of the source symbol.
name		Specify a symbol name with index space and potentially suffix for the Connect database.
newName		Specify a new name with index space for the symbol in the Connect database.
text	null	Element text for resulting sets.
trace	0	Specify the trace level for debugging output.

Detailed description of the options:

aggregationMethod: string (default: null)

Specify the method used for aggregation. The default null will not perform any aggregation which might result in duplicate records if at least one index position is projected out. For sets, variables, and equations (without suffix) only first and last are meaningful. For parameters, variables, and equations (with suffix) many other aggregation methods are available and meaningful: max, mean, median, min, prod, sem (unbiased standard error of the mean), sum, std (standard deviation), nunique (number of distinct elements), first, last. The projection agent is based on pandas DataFrames and more detailed explanations of the aggregation method can be found at the pandas website.

Note

Performing a projection that results in a scalar symbol with multiple values is currently not supported and requires the use of an aggregation method.

asSet: boolean (default: False)

Usually the type of the source symbol and the use of a suffix with variables and equations determine the type of the target symbol. With asSet set to True the target symbol will be a set.

name: string, list of strings (required)

One either specifies a single symbol name with index space and potentially suffix for the Connect database or a list of symbol names of scalar symbols. In the prior case, name requires the format symName[.suffix](i1,i2,...,iN). The suffix is only allowed on variable and equation symbols and can be either a single suffix (.l, .m, .lo, .up, .scale, or .all) or a list of suffixes in square brackets (e.g. .[l,m,lo,up,scale], .[l], or .[all]). If a list of suffixes is provided an additional index is added at the end of the index list that contains the selected attribute labels (e.g. level, marginal, lower, upper, and scale). Using .all is equivalent to .[all] and .[l,m,lo,up,scale] and will always add an additional index. The list of indices does not need to coincide with the names of the actual GAMS domain sets. This index list together with the index list specified for newName is solely intended to establish the index order in the symbol specified by newName. The names in the index list need to be unique. In the latter case (a list of symbol names), the symbols need to be scalar symbols of the same type (parameter, variable, or equation) and a new one-dimensional symbol (of the same type) is created that holds the symbol names as labels.

newName: string (required)

Specify a new name with index space for the projected or reordered symbol in the Connect database. Note that each symbol in the Connect database must have a unique name. newName is given as symName(i1,i2,...,iN). The list of indices does not need to coincide with the names of the actual GAMS domain sets. This index list together with the index list specified for name is solely intended to establish the index order. Only names that are part of the index list specified for name can be used. Unlike the index list for name, the names in the index list for newName can be duplicated. For example: name: p(i,j,k) and newName: q(k,i,i,k).

text: string (default: null)

Control the handling of element text if the resulting symbol is a set. If set to "", the text will be dropped. When left at default (None) and the projected symbol is a set, the element text of the original set will be used. For other symbols types, the text will be dropped. If text is a string, this string will be assigned to all elements. The string can contain placeholders {i} that will be replaced with the content of the matching index position. For example, text: "{j} - {i}: {element_text}", where {i} and {j} should be index space names in the index space of the symbol name. {element_text} refers to original element text (set) or string representation of a numerical value (parameter or variable/equation with a given suffix) of the source symbol.

trace: integer (default: 0)

Specify the trace level for debugging output:

• trace = 0: No trace output.
• trace > 0: Log instructions and Connect container status.
• trace > 1: Log additional scalar output.
• trace > 2: Log abbreviated intermediate DataFrames.
• trace > 3: Log entire intermediate DataFrames (potentially large output).

PythonCode

The PythonCode agent allows to execute arbitrary Python code. From within the code, it is possible to access the GAMS database via gams.db (if the PythonCode agent is running in a GAMS context) and the Connect database via connect.container. The GAMS database is an instance of GamsDatabase, whereas the Connect database is a GAMS Transfer Container object. Furthermore there is a predefined instructions list that can be filled with agent instructions that are automatically executed.

Option	Default	Description
code		Python code to be executed.
trace	0	Specify the trace level for debugging output.

Detailed description of the options:

code: string (required)

Python code to be executed. The YAML syntax offers the pipe character (|) for specifying multi-line strings:

- PythonCode:
    code: |
      print("Print from Python")
      # insert more Python code here

It is possible to generate agents by appending individual agent instructions to the Python instructions list. Those have to be specified by using Python data structures that match the schema of a specific Connect agent. At the end of the Python code, all instructions from the instructions list are automatically executed. The following example shows how to fill the instructions list with three ExcelWriter agents that write different parameters (p0, p1, p2) into separate Excel workbooks (data_p0.xlsx, data_p1.xlsx, data_p2.xlsx).

- GAMSReader:
    symbols: all
- PythonCode:
    code: |
      symbols = [ 'p0', 'p1', 'p2' ]
      for s in symbols:
        instructions.append(
        {
          'ExcelWriter':
          {
            'file': 'data_{}.xlsx'.format(s),
            'symbols': [{'name': s}]
          }
        })

trace: integer (default: 0)

Specify the trace level for debugging output:

• trace = 0: No trace output.
• trace > 0: Log instructions and Connect container status.
• trace > 1: Log additional scalar output.
• trace > 2: Log generated instructions if any.

Using connect.container allows to access the Connect database directly in the Python code. The connect.container is a GAMS Transfer Container object and data within the container is stored as pandas DataFrames. Please refer to the documentation of GAMS Transfer to learn more about GAMS Transfer and its functionalities.

The following complete example shows how to access and modify Connect container data and manually add a new symbol with the modified data to the Connect container:

Set i /1, 2, 3/
    i_mod;

$onembeddedCode Connect:
- GAMSReader:
    symbols: all
- PythonCode:
    code: |
        i_mod_records = [ 'i'+n for n in connect.container["i"].records.iloc[:,0] ]
        connect.container.addSet("i_mod", ["*"], records=i_mod_records)
- GAMSWriter:
    symbols:
      - name: i_mod
$offembeddedCode

display i, i_mod;

The first line takes the data of set i and adds an i at the beginning of each UEL in the first column of the DataFrame. The last line writes the modified DataFrame as set i_mod to the Connect database.

Here is another complete example modifying Connect container data and adding a new symbol with the modified data:

Parameter p;

$onEcho > p_raw.csv
i,j,2000,2001
i1,j1,1,2
i2,j2,3,4
i3,j3,5,6
$offEcho

$onEmbeddedCode Connect:
- CSVReader:
    file: p_raw.csv
    name: p_raw
    header: True
    indexColumns: "1,2"
    valueColumns: "2:lastCol"
- PythonCode:
    code: |
        p_records = [ [r[0] + '_' + r[1]] + list(r) for i,r in connect.container["p_raw"].records.iterrows() ]
        connect.container.addParameter("p", ["*"]*4, records=p_records)
- GAMSWriter:
    symbols:
      - name: p
$offEmbeddedCode

display p;

In this example, we take the data of parameter p_raw and insert a column of the concatenated row dimensions into the first column of the DataFrame. The modified DataFrame is then added to the Connect container as records for the new symbol p. Here is a display of GAMS parameter p:

INDEX 1 = i1_j1

             2000        2001

i1.j1       1.000       2.000

INDEX 1 = i2_j2

             2000        2001

i2.j2       3.000       4.000

INDEX 1 = i3_j3

             2000        2001

i3.j3       5.000       6.000

RawCSVReader

The RawCSVReader allows reading of unstructured data from a specified CSV file into the Connect database. Due to performance issues this agent is recommended for small to medium sized unstructured CSV only. This reader works similarly compared to the RawExcelReader agent. It reads the entire CSV file and represents its content in a couple of GAMS sets:

• r / r1, r2, ... / (rows)
• c / c1, c2, ... / (columns)
• vs(r,c) / s1.r1.c2 "cell text", ... / (cells with explanatory text)
• vu(r,c,*) / s1.r1.c1."cell text" "cell text", ... (cells with potential GAMS label)

and a parameter vf(r,c) / r2.c2 3.14, ... / (cells with numerical values). Unlike RawExcelReader cells with a date will be not interpreted and stored in vs and vu. Cells with a string value will be stored in vs. If the string length exceeds the maximum length allowed for elements text, it will be truncated. RawCSVReader will try to represent the cell value as a number and if this succeeds stores the number in vf. Strings of GAMS special values INF, -INF, EPS, NA, and UNDEF as well as TRUE and FALSE will be also converted to its numerical counterpart. It will also try to represent the cell value as a string and stores this as a label in the third position in vu. GAMS labels have a length limitation and hence RawCSVReader automatically shortens the label to fit this limit. RawCSVReader will provide a unique label (ending in ~n where n is an integer for strings exceeding the label length limit) for each string in the CSV file. The full string (if it fits) will be available as the element text of the vu record.

To read a CSV file with the RawCSVReader specify:

- RawCSVReader:
    file: data.csv

Option	Default	Description
cName	c	Symbol name for columns.
columnLabel	C	Label for columns.
file		Specify a CSV file path.
readAsString	True	Control the automatic pandas type conversion of cells.
readCSVArguments	null	Dictionary containing keyword arguments for the pandas.read_csv method.
rName	r	Symbol name for rows.
rowLabel	R	Label for rows.
trace	0	Specify the trace level for debugging output.
vfName	vf	Symbol name for cells with a numerical value.
vsName	vs	Symbol name for cells with an explanatory text.
vuName	vu	Symbol name for cells with a potential GAMS label.

Detailed description of the options:

cName: string (default: c)

Control the name of the set of columns.

columnLabel: string (default: C)

Control the labels for the set of columns (c).

file: string (required)

Specify a CSV file path.

readAsString: boolean (default: True)

Control the type of cells returned by pandas.read_csv. If this is set to True (default) all cells are returned as string and the agent tries to interpret the string itself. If this is set to False pandas will try to infer the type. In such a case the agent can't distinguish between cells with 1 and 1.00 because pandas turned the integer 1 already into a float and the agent has no way for recovering the original cell.

readCSVArguments: dictionary (default: null)

Dictionary containing keyword arguments for the pandas.read_csv method. By specifying readCSVArguments, it is possible to pass arguments directly to the pandas.read_csv method. For example, readCSVArguments: {delimiter: ';'}.

rName: string (default: r)

Control the name of the set of rows.

rowLabel: string (default: R)

Control the labels for the set of rows (r).

trace: integer (default: 0)

Specify the trace level for debugging output:

• trace = 0: No trace output.
• trace > 0: Log instructions and Connect container status.
• trace > 1: Log additional scalar output.
• trace > 2: Log abbreviated intermediate DataFrames and the cell values and it's processing (potentially large output).
• trace > 3: Log entire intermediate DataFrames (potentially large output).

vfName: string (default: vf)

Control the name of the parameter for cells with a numerical value.

vsName: string (default: vs)

Control the name of the set for cells with an explanatory text.

vuName: string (default: vu)

Control the name of the set for cells with a potential GAMS label.

RawExcelReader

The RawExcelReader allows reading of unstructured data from a specified Excel file into the Connect database. Due to performance issues this agent is recommended for small to medium sized unstructured Excel files only. This reader works similarly compared to the xlsdump tool. It reads the entire spreadsheet and represents its content in a couple of GAMS sets:

• s /s1, s2,.../ (workbook sheets)
• w / Sheet1, Sheet2, ... / (workbook sheets by name)
• ws(s,w) / s1.Sheet1, s2.Sheet2, ... / (workbook map)
• r / r1, r2, ... / (rows)
• c / c1, c2, ... / (columns)
• vs(s,r,c) / s1.r1.c2 "cell text", ... / (cells with explanatory text)
• vu(s,r,c,*) / s1.r1.c1."cell text" "cell text", ... (cells with potential GAMS label)

and a parameter vf(s,r,c) / s1.r2.c2 3.14, ... / (cells with numerical values). Cells with a date will be stored in it's string representation in vu and as a Julian date in vf. Cells with a string value will be stored in vs. If the string length exceeds the maximum length allowed for elements text, it will be truncated. Excel offers many other cell value types. RawExcelReader will try to represent the cell value as a number and if this succeeds stores the number in vf. Strings of GAMS special values INF, -INF, EPS, NA, and UNDEF will be also converted to its numerical counterpart. It will also try to represent the cell value as a string and stores this as a label in the fourth position in vu. GAMS labels have a length limitation and hence RawExcelReader automatically shortens the label to fit this limit. RawExcelReader will provide a unique label (ending in ~n where n is an integer for strings exceeding the label length limit) for each string in the workbook. The full string (if it fits) will be available as the element text of the vu record.

To read an Excel file with the RawExcelReader specify:

- RawExcelReader:
    file: data.xlsx

Option	Default	Description
cName	c	Symbol name for columns.
columnLabel	C	Label for columns.
file		Specify an Excel file path.
mergedCells	False	Control the handling of empty cells that are part of a merged Excel range.
rName	r	Symbol name for rows.
rowLabel	R	Label for rows.
sheetLabel	S	Label for workbook sheets.
sName	s	Symbol name for workbook sheets.
trace	0	Specify the trace level for debugging output.
vfName	vf	Symbol name for cells with a numerical value.
vsName	vs	Symbol name for cells with an explanatory text.
vuName	vu	Symbol name for cells with a potential GAMS label.
wName	w	Symbol name for workbook sheets by name.
wsName	ws	Symbol name for workbook map.

Detailed description of the options:

cName: string (default: c)

Control the name of the set of columns.

columnLabel: string (default: C)

Control the labels for the set of columns (c).

file: string (required)

Specify an Excel file path.

mergedCells: boolean (default: False)

Control the handling of empty cells that are part of a merged Excel range. If False, the cells are left empty. If True, the merged value is used in all cells. Note that setting this option to True has an impact on performance since the Excel workbook has to be opened in a non-read-only mode that results in non-constant memory consumption (no lazy loading).

rName: string (default: r)

Control the name of the set of rows.

rowLabel: string (default: R)

Control the labels for the set of rows (r).

sheetLabel: string (default: S)

Control the labels for the set of workbook sheet (s).

sName: string (default: s)

Control the name of the set of workbook sheets.

trace: integer (default: 0)

Specify the trace level for debugging output:

• trace = 0: No trace output.
• trace > 0: Log instructions and Connect container status.
• trace > 1: Log additional scalar output.
• trace > 2: Log abbreviated intermediate DataFrames and the cell values and it's processing (potentially large output).
• trace > 3: Log entire intermediate DataFrames (potentially large output).

vfName: string (default: vf)

Control the name of the parameter for cells with a numerical value.

vsName: string (default: vs)

Control the name of the set for cells with an explanatory text.

vuName: string (default: vu)

Control the name of the set for cells with a potential GAMS label.

wName: string (default:w)

Control the name of the set of workbook sheets by name.

wsName: string (default: ws)

Control the name of the set of the workbook map.

SQLReader

The SQLReader agent allows to read symbols (sets and parameters) from a specified database management system (DBMS) into the Connect database. The SQLReader provides DBMS specific connection types for fast and efficient communication with MS-Access, MySQL, Postgres, SQLite and SQL Server (MS-SQL), as well as the generic connection types, PyODBC and SQLAlchemy, that allow to connect to various DBMS if the required database drivers are installed on the system. The SQLAlchemy connection type is based on pandas.DataFrame class' I/O API method read_sql. See getting started example for a simple example that uses the SQLReader.

Note

The connectivity to MS-Access databases is available on Windows only and requires a 64-bit MS-Access ODBC driver. See connection for more information.

Option	Scope	Default	Description
connection	root		Connection dictionary to specify credentials for the database.
connectionArguments	root	null	Dictionary containing keyword arguments for the connect constructor of the respective SQL library or for the sqlalchemy.create_engine constructor.
connectionType	root	sqlite	Specify the connection type that will be used to connect to the database.
dTypeMap	root/symbols	null	Dictionary used to specify the dtype of columns.
indexSubstitutions	root/symbols	null	Dictionary used for substitutions in the index columns.
name	symbols		Specify the name of the symbol in the Connect database.
query	symbols		Specify the SQL query.
readSQLArguments	root/symbols	null	Dictionary containing keyword arguments for the pandas.read_sql method.
symbols	root		Specify symbol specific options.
trace	root	0	Specify the trace level for debugging output.
type	root/symbols	par	Control the symbol type.
valueColumns	symbols	infer	Specify columns to get the values from.
valueSubstitutions	root/symbols	null	Dictionary used for mapping in the value column of the DataFrame.

Detailed description of the options:

connection: dictionary (required)

Allows to specify the credentials to access the database. Below are examples for connection dictionaries based on the selected connectionType.

sqlite:

connection: {'database': 'absolute//path//to//datafile.db'}

postgres/mysql/sqlserver:

connection: {'user': <username of the database server>, 'password': <password>, 'host': <hostname or ip address>, 'port': <port number of remote machine>, 'database': <database name>}

access:

connection: {'DRIVER': 'Microsoft Access Driver (*.mdb, *.accdb)', 'DBQ': 'absolute//path//to//datafile.db'}

Note

The connectivity to MS-Access databases is available on Windows only and requires a 64-bit MS-Access ODBC driver. If no MS-Access is installed or a 32-bit version of MS-Access, download and install a 64-bit MS-Access ODBC Driver as a redistributable package from Microsoft (e.g. MS-Access 2013 Runtime_x64).

sqlalchemy:

Use connectionType: sqlalchemy to connect to various databases. Note that the argument drivername: <dialect+driver> is required.

For dialect SQLite:

connection: {'drivername': 'sqlite', 'database': 'absolute//path//to//datafile.db'}

For dialect Postgres:

connection: {'drivername': 'postgresql+psycopg2', 'username': <username>, 'password': <password>, 'host': <hostname or ip address>, 'port': <port number of remote machine>, 'database': <database name>}

For dialect MySQL:

connection: {'drivername': 'mysql+pymysql', 'username': <username>, 'password': <password>, 'host': <hostname or ip address>, 'port': <port number of remote machine>, 'database': <database name>}

For dialect SQL Server:

connection: {'drivername': 'mssql+pymssql', 'username': <username>, 'password': <password>, 'host': <hostname or ip address>, 'port': <port number of remote machine>, 'database': <database name>}

For dialect MS-Access:

connection: {'drivername': 'access+pyodbc', 'query': {'odbc_connect': 'DRIVER={Microsoft Access Driver (*.mdb, *.accdb)};DBQ=absolute//path//to//datafile.db;'}}

Note

Connecting to databases other than MySQL, Postgres, SQLite and SQL Server through SQLAlchemy requires the respective driver of that database to be present on the system. For the MS-Access dialect, sqlalchemy-access must be installed on the system.

pyodbc:

Use connectionType: pyodbc to connect any database that provides an ODBC (Open Database Connectivity) driver. Therefore, either specify the DSN (Data Source Name):

connection: {'DSN': <Data Source Name>}

or insert the connection information directly:

connection: {'user': <username>, 'password': <password>, 'host': <hostname or ip address>, 'port': <port number of remote machine>, 'database': <database name>, 'driver': <name of the ODBC driver>}

connectionArguments: dictionary (default: null)

Dictionary containing keyword arguments for the connect constructor of the respective SQL library or for the sqlalchemy.create_engine constructor.

connectionType: access, pyodbc, mysql, postgres, sqlalchemy, sqlite, sqlserver (default: sqlite)

Specify the connection type that will be used to connect to the database.

The connection type pyodbc allows to connect to any DBMS that provides an ODBC (Open Database Connectivity) driver. The user is responsible that the required ODBC drivers are installed on the system. For Windows systems, the required pyodbc Python library is already included in the GAMS distribution. For non-Windows systems, the user is responsible for installing pyodbc and handling any other dependencies.

The connection type sqlalchemy allows to connect to various DBMS by providing the appropriate dialect and driver. The user is responsible that the required database drivers are installed on the system. Following database drivers are already included in the GAMS distribution: psycopg2, pymssql, pymysql and pyodbc (on Windows only).

Note

If additional Python libraries need to be installed, one can either extend GMSPython or use an external Python 3 installation that provides the required libraries.

dTypeMap: dictionary (default: null)

Allows to specify the dtype of columns in a dictionary as key: value pairs, i.e. <column>: <dtype>.

indexSubstitutions: dictionary (default: null)

Dictionary used for substitutions in the index columns. Each key in indexSubstitutions is replaced by its corresponding value. This option allows arbitrary replacements in the index columns.

name: string (required)

Name of the symbol in the Connect database. The name must be unique for each symbol.

query: string (required)

Specify the SQL query which will fetch the desired table from the database system.

readSQLArguments: dictionary (default: null)

Dictionary containing keyword arguments for the pandas.read_sql method. Not all arguments of that method are exposed through the YAML interface of the SQLReader agent. By specifying readSQLArguments, it is possible to pass arguments directly to the pandas.read_sql method that is used by the SQLReader agent if connectionType: sqlalchemy. If the connection type is not sqlalchemy, this option can be used to parameterize the SQL query. A small example showing how this option can be used is given below.

query: "SELECT i,j FROM stock_table WHERE value_col > %(value)s"
readSQLArguments: {'value': 10}

Note

Different DBMS use different parameter markers and some do not support named parameter markers, e.g. PyODBC.

symbols: list of symbols (required)

A list containing symbol specific options.

trace: integer (default: 0)

Specify the trace level for debugging output:

• trace = 0: No trace output.
• trace > 0: Log instructions and Connect container status.
• trace > 1: Log additional scalar output.
• trace > 2: Log abbreviated intermediate DataFrames.
• trace > 3: Log entire intermediate DataFrames (potentially large output).

type: par, set (default: par)

Control the symbol type. Supported symbol types are par for GAMS parameters and set for GAMS sets.

valueColumns: infer, lastCol, none, list of strings (default: infer)

Specify columns to get the values from. The value columns contain numerical values in case of a GAMS parameter and set element text in case of a GAMS set. The columns are given as column names represented as a list of strings. For example: valueColumns: ["i1", "i2"]. If there is more than one value column specified, the column names are stacked to index automatically. As string one can specify the symbolic constant lastCol (i.e. valueColumns: lastCol) or none (i.e. valueColumns: none). When lastCol is passed the last column will be treated as a value column and all the other columns will be treated as index columns. When none is passed all columns will be treated as index columns. Specifying none is only valid for symbol type set since symbol type par requires at least one value column. The default infer uses lastCol for symbol type par and none for symbol type set.

valueSubstitutions: dictionary (default: null)

Dictionary used for substitutions in the value column. Each key in valueSubstitutions is replaced by its corresponding value. The replacement is only performed on the values which is the numerical value in case of a GAMS parameter and the set element text in case of a GAMS set. While it is possible to make arbitrary replacements, this is especially useful for controlling sparse/dense reading.

SQLWriter

The SQLWriter agent allows to write symbols (sets and parameters) from the Connect database to a specified database management system (DBMS). Variables and equations need to be turned into parameters with the Projection agent before they can be written. The SQLWriter provides DBMS specific connection types for fast and efficient communication with MS-Access, MySQL, Postgres, SQLite and SQL Server (MS-SQL), as well as the generic connection types, PyODBC and SQLAlchemy, that allow to connect to various DBMS if the required database drivers are installed on the system. The SQLAlchemy connection type is based on pandas.DataFrame class' I/O API method to_sql. See getting started example for a simple example that uses the SQLWriter.

Note

The connectivity to MS-Access databases is available on Windows only and requires a 64-bit MS-Access ODBC driver. See connection for more information.

Option	Scope	Default	Description
columnEncloser	root	'	Specify if the database uses special character to enclose column names.
connection	root		Connection dictionary to specify credentials for the database.
connectionArguments	root	null	Dictionary containing keyword arguments for the connect constructor of the respective SQL library or for the sqlalchemy.create_engine constructor.
connectionType	root	sqlite	Specify the connection type that will be used to connect to the database.
dTypeMap	root/symbols	null	Specify if the database has a special data type for text and numerical data type columns.
fast	root	False	Accelerate data inserts using some non-standard pragmas. For SQLite only.
ifExists	root/symbols	fail	Specify the behavior when a table with the same name exists in the database/schema.
insertMethod	root/symbols	default	Specify the insertion method to be used to write the table in the database.
name	symbols		Specify the name of the symbol in the Connect database.
schemaName	root/symbols	null	Specify the schema name.
skipText	root/symbols	False	Indicate if the set element text will be skipped.
small	root	False	Reduce the size of the database by storing UELs in a separate table. For SQLite only.
symbols	root	all	Specify symbol specific options.
tableName	symbols		Specify the SQL table/relation in the provided database/schema.
toSQLArguments	root/symbols	null	Dictionary containing keyword arguments for the pandas.to_sql method.
trace	root	0	Specify the trace level for debugging output.
unstack	root/symbols	False	Indicate if the last index column will be used as a header row.
valueSubstitutions	root/symbols	null	Dictionary used for mapping in the value column of the DataFrame.

Detailed description of the options:

columnEncloser: string (default: ')

When connecting to a database via connectionType: pyodbc, this option can be used to specify the character used to enclose column names. If the database uses [] to enclose column names, then the same can be set through this option. For example, columnEncloser: "[]".

connection: dictionary (required)

Allows to specify the credentials to access the database. See SQLReader connection for further details and some examples.

Note

The connectivity to MS-Access databases is available on Windows only and requires a 64-bit MS-Access ODBC driver. If no MS-Access is installed or a 32-bit version of MS-Access, download and install a 64-bit MS-Access ODBC Driver as a redistributable package from MS (e.g. MS-Access 2013 Runtime_x64).

connectionArguments: dictionary (default: null)

Dictionary containing keyword arguments for the connect constructor of the respective SQL library or for the sqlalchemy.create_engine constructor.

connectionType: access, pyodbc, mysql, postgres, sqlalchemy, sqlite, sqlserver (default: sqlite)

Specify the connection type that will be used to connect to the database.

The connection type pyodbc allows to connect to any DBMS that provides an ODBC (Open Database Connectivity) driver. The user is responsible that the required ODBC drivers are installed on the system. For Windows systems, the required pyodbc Python library is already included in the GAMS distribution. For non-Windows systems, the user is responsible for installing pyodbc and handling any other dependencies for the local Python installation.

Note

pyodbc provides a simple and consistent API to connect to many different databases using the ODBC interface. This introduces the challenge that database specific properties are not taken into consideration. For example, different databases have different escaping syntax in order to escape special characters in column names of a table. Thus, the implementation for connection type pyodbc is kept as a general purpose connector to different databases while not escaping the special characters.

The connection type sqlalchemy allows to connect to various DBMS by providing the appropriate dialect and driver. The user is responsible that the required database drivers are installed on the system. Following database drivers are already included in the GAMS distribution: psycopg2, pymssql, pymysql and pyodbc (on Windows only).

Note

If additional Python libraries need to be installed, one can either extend GMSPython or use an external Python 3 installation that provides the required libraries.

dTypeMap: dictionary (default: null)

When connecting to a database via connectionType: pyodbc, this option can be used to specify custom data types for text and numerical data if the database does not support the default assignment which is as follows:

dTypeMap: {'float': 'FLOAT', 'integer': 'BIGINT', 'text': 'TEXT'}

If the database stores integers using BIGINT data type but stores floating point numbers as DOUBLE and text using BLOB data type, then the option should take the following key-value pairs, dTypeMap: {'float': 'DOUBLE', 'text': 'BLOB'}. Keys other than float, integer, and text will be ignored.

fast: boolean (default: False)

Specify if the SQLWriter should accelerate data inserts using some non-standard pragmas for connectionType: sqlite. Enabling this option turns off the SQLite journal and the synchronize option which speeds up data inserts but reduces data consistency in case of a program crash.

ifExists: append, fail, replace (default: fail)

Specify the behavior when a table with the same name exists in the database/schema.

insertMethod: bcp, bulkInsert, default (default: default)

Specify the insertion method to be used to write the table in the database.

The insertion method bulkInsert allows for faster insertion when exporting large amounts of data. It can be used together with connection types access, mysql, postgres and sqlserver (for local SQL Server databases). It creates a temporary CSV file and then imports the file into the database.

The insertion method bcp can only be used together with connection type sqlserver. It is based on the bulk copy program (bcp) utility of SQL Server and allows for fast insertion when exporting large amounts of data to local and remote SQL Server databases. In order to use the insert method bcp, the ODBC driver for SQL Server and the bcp utility must be installed on the system. For more information on installing both requirements, refer to the official bcp utility documentation.

Note

For MySQL with insertionMethod: bulkInsert the option LOCAL_INFILE must be enabled on the server.

name: string (required)

Specify the name of the symbol in the Connect database.

schemaName: string (default: null)

Specify the schema name for writing the table to the correct location. In Postgres, by default, it writes to a public schema already present in every database.

skipText: boolean (default: False)

Indicate if the set element text will be skipped. If False, the set element text will be written to the last column of the database table.

small: boolean (default: False)

Reduce the size of the database by storing UELs in a separate table for connectionType: sqlite. A user-friendly SQL VIEW is created to hide the complexity of the joins. The created tables are accessible through their corresponding SQL VIEW.

Note

The SQL VIEW is created with the specified table name, whereas the underlying SQL TABLE is created using the table name with an appended $.

Attention

This option can only be enabled when writing a new SQLite database file. The SQLWriter with activated small mode, does not support writing to an existing database.

symbols: all, list of symbols (default: all)

A list containing symbol specific options. The default all writes each parameter and set into the specified DBMS where the table name is defined by the name of the symbol.

tableName: string (required)

Name of the SQL table/relation in the provided database/schema.

toSQLArguments: dictionary (default: null)

Dictionary containing keyword arguments for the pandas.to_sql method. Not all arguments of that method are exposed through the YAML interface of the SQLWriter agent. By specifying toSQLArguments, it is possible to pass arguments directly to the pandas.to_sql method that is used by the SQLWriter agent if connectionType: sqlalchemy.

trace: integer (default: 0)

Specify the trace level for debugging output:

• trace = 0: No trace output.
• trace > 0: Log instructions and Connect container status.
• trace > 1: Log additional scalar output.
• trace > 2: Log abbreviated intermediate DataFrames.
• trace > 3: Log entire intermediate DataFrames (potentially large output).

unstack: boolean (default: False)

Indicate if the last index column will be used as a header row.

valueSubstitutions: dictionary (default: null)

Dictionary used for mapping in the value column of the DataFrame. Each key in valueSubstitutions is replaced by its corresponding value. The replacement is only performed on the value column of the DataFrame which is the numerical value in case of a GAMS parameter and the set element text in case of a GAMS set. If GAMS special values should be replaced by custom values, use the string representation (upper case) in the dictionary, i.e. INF, -INF, EPS, NA, and UNDEF. For example, specify {'EPS': 0} to replace GAMS special value EPS by zero. See the GAMS Transfer documentation for more information on GAMS special values. In contrast to the CSVWriter and the ExcelWriter, the SQLWriter does not automatically convert numerical GAMS special values to their string representation. The actual values depend on the DBMS as well as the connectionType.

Examples

This section provides a collection of more complex examples. For simple examples see section Getting Started Examples.

Connect Example for Excel (executeTool win32.ExcelMerge)

The following example shows how to read and write Excel files in Connect. On Windows with Excel installed, the output sheets are merged back into the input workbook using tool win32.ExcelMerge. The entire code is listed at the end of the example. This model is part of DataLib as model connect05. First, the original matrix a is read using the GAMSReader and is then written to input.xlsx using the ExcelWriter. After clearing symbols i and a in the GAMS database, the ExcelReader is used to read file input.xlsx back in and create parameter a in the Connect database. The Projection agent extracts set i from parameter a. With the GAMSWriter, symbols i and a are written to the GAMS database. The tool linalg.invert calculates the inverse inva of a which is then written to output.xlsx using Connect's GAMSReader and ExcelWriter at execution time. The following lines then check if the code is not executed on a UNIX system and if Excel is available. If both is true, output.xlsx is merged into input.xlsx using tool win32.ExcelMerge and both symbols inva and a can be read from input.xslx with a single instance of the ExcelReader. If the code is executed on a UNIX system and/or Excel is not available, output.xlsx can not be merged into input.xlsx, and both files need to be read to create the symbols inva and a. The last part makes sure that inva is the inverse of a.

set i / i1*i3 /; alias (i,j,k);
table a(i,j) 'original matrix'
      i1     i2     i3
i1    1      2      3
i2    1      3      4
i3    1      4      3
;
$onEmbeddedCode Connect:
- GAMSReader:
    symbols:
      - name: a
- ExcelWriter:
    file: input.xlsx
    symbols:
      - name: a
$offEmbeddedCode

$onMultiR
$clear i a

$onEmbeddedCode Connect:
- ExcelReader:
    file: input.xlsx
    symbols:
      - name: a
- Projection:
    name: a(i,j)
    newName: i(i)
    asSet: True
- GAMSWriter:
    symbols: all
    duplicateRecords: first
$offEmbeddedCode i a

parameter
  inva(i,j) 'inverse of a'
  chk(i,j)  'check the product a * inva'
  ;

executeTool.checkErrorLevel 'linalg.invert i a inva';

embeddedCode Connect:
- GAMSReader:
    symbols:
      - name: inva
- ExcelWriter:
    file: output.xlsx
    symbols:
      - name: inva
endEmbeddedCode

Scalar mergedRead /0/;
executeTool 'win32.msappavail Excel';
mergedRead$(errorLevel=0) = 1;

if (mergedRead,
    executeTool.checkErrorLevel 'win32.excelMerge output.xlsx input.xlsx';
    embeddedCode Connect:
    - ExcelReader:
        file: input.xlsx
        symbols:
          - name: a
          - name: inva
    - GAMSWriter:
        symbols: all
    endEmbeddedCode a inva
else
    embeddedCode Connect:
    - ExcelReader:
        file: input.xlsx
        symbols:
          - name: a
    - ExcelReader:
        file: output.xlsx
        symbols:
          - name: inva
    - GAMSWriter:
        symbols: all
    endEmbeddedCode a inva
);

chk(i,j) = sum{k, a(i,k)*inva(k,j)};
chk(i,j) = round(chk(i,j),15);
display a,inva,chk;
chk(i,i) = chk(i,i) - 1;
abort$[card(chk)] 'a * ainv <> identity';

Connect Example for Excel

The following example shows how to read and write Excel files in Connect. The entire code is listed at the end of the example. This model is part of DataLib as model connect01. The example (inspired by the model herves) reads a 3-dimensional parameter from a spreadsheet that has one row index (code) at the left side of the table and the other row index (labId) at the right of the table. A column index (cut) is at the top of the table. The column index consists of floating-point numbers. The goal it to read the data into GAMS but modify the labels of some sets: Only the first two decimal digits of the elements in cut are significant. Moreover, the labId should be prefixed with an L. A new spreadsheet with the new labels should be written. The layout of the table should remain with the exception of moving the labId column also to the left. Here is a screenshot of the original table:

The following GAMS code uses a separate GAMS program (getdata.gms) to get the raw data from the original spreadsheet. Connect runs inside a compile-time embedded code section and uses the Connect agent RawExcelReader to get the raw Excel data. In some subsequent GAMS code the sets rr and cut[Id] as well as the parameter raw are filled knowing the layout of the table (the code is written in a way that the table can grow). This GAMS program gets executed and instructed to create a GDX file. In a compile-time embedded Connect section the relevant symbols (rr, cutId, and raw) are read from this GDX file. The Projection agent extracts the domain labid from the set rr and some Python code using Connect agent PythonCode makes the label adjustments and sorts the data nicely. The Python code uses the connect.container methods to read from and write to the Connect database. Finally, the GAMSWriter agent sends the data to GAMS. In the main program at execution-time an embedded Connect code section exports the labdata parameter in the required form (after reading it from GAMS with the GAMSReader agent). Here is a screenshot of the resulting table:

In the remainder of the GAMS code another execution-time embedded Connect code is used to read the data back from the newly created spreadsheet using Connect agent ExcelReader. The set rr is created from parameter labdata using the Projection agent and everything is written back to GAMS with Connect agent GAMSWriter. The original data and the data from the newly created spreadsheet are exported to GDX (using execute_unload) and compared to verify that the data is identical by calling gdxdiff.

Set code, labId, cut, rr(code<,labId);
parameter labdata(code,labid,cut);
$onEcho > getdata.gms
* Symbols for RawExcelReader
alias (u,*); Set s,w,r,c,ws(s,w),vs(s,r,c),vu(s,r,c,u); Parameter vf(s,r,c);
$onEmbeddedCode Connect:
- RawExcelReader:
    file: labdata.xlsx
- GAMSWriter:
    symbols: all
$offEmbeddedCode

* Symbols to be filled
alias (*,code,labId,cut); Parameter raw(code,labId,cut); Set cutId, rr(code,labId)
Set cX(c,cut) 'column index', rX(r,code,labId) 'row index';
Singleton set cLast(c); Scalar lastPos;
loop(ws(s,'ZAg'),
  lastPos = smax(vu(s,r,c,u), c.pos); cLast(c) = c.pos=lastPos;
  loop(r$(ord(r)>4),
    rX(r,code,labId) $= vu(s,r,'C1',code) and vu(s,r,cLast,labId));
  loop(c$(ord(c)>1 and not cLast(c)),
    cX(c,cut) $= vu(s,'R4',c,cut));
  loop((rX(r,code,labId),cX(c,cut)),
    raw(code,labId,cut) = vf(s,r,c))
  loop(cX(c,cut),
    cutId(cut) = yes)
);
option rr<rX;
$offEcho
$call.checkErrorLevel gams getdata.gms lo=%gams.lo% gdx=getdata.gdx
$onEmbeddedCode Connect:
- GDXReader:
    file: getdata.gdx
    symbols: [ {name: rr}, {name: raw}, {name: cutId, newName: cut} ]
- Projection:
    name: rr(code,labid)
    newName: labid(labid)
- PythonCode:
    code: |
      labid_records = sorted([ 'L'+t[0] for t in connect.container['labid'].records.values ], key=lambda t: int(t[1:]))
      rr_records = sorted([ (t[0],
                               'L'+t[1]) for t in connect.container['rr'].records.values ], key=lambda t: int(t[0]))
      # Trim elements of set cut to two decimal places
      cut_records = sorted([ '{:.2f}'.format(float(t[0])) for t in connect.container['cut'].records.values ], key=float)
      labdata_records = [ (t[0],
                             'L'+t[1],
                             '{:.2f}'.format(float(t[2])),
                             t[-1]) for t in connect.container['raw'].records.values ]

      connect.container.addSet('labid_mod', ['*'], records=labid_records)
      connect.container.addSet('rr_mod', ['*']*2, records=rr_records)
      connect.container.addSet('cut_mod', ['*'], records=cut_records)
      connect.container.addParameter('labdata', ['*']*3, records=labdata_records)
- GAMSWriter:
    symbols: [ {name: labid_mod, newName: labid}, {name: rr_mod, newName: rr}, {name: cut_mod, newName: cut}, {name: labdata} ]
    duplicateRecords: first
$offEmbeddedCode
execute_unload 'labdata.gdx', labdata, cut, rr;

* Reintroduce 0 (zeros)
labdata(rr,cut) = labdata(rr,cut) + eps;

execute 'rm -f labdatanew.xlsx';
* Write new workbook with good table
embeddedCode Connect:
- GAMSReader:
    symbols: [ {name: labdata} ]
- ExcelWriter:
    file: labdatanew.xlsx
    valueSubstitutions: {EPS: 0}
    symbols:
      - name: labdata
        range: ZAg!A4
endEmbeddedCode
option clear=rr, clear=labdata;

embeddedCode Connect:
- ExcelReader:
    file: labdatanew.xlsx
    symbols:
      - name: labdata
        rowDimension: 2
        range: ZAg!A4
- Projection:
    name: labdata(code,labid,cut)
    newName: rr(code,labid)
    asSet: True
- GAMSWriter:
    symbols: all
    duplicateRecords: first
endEmbeddedCode
execute_unload 'labdatanew.gdx', labdata, cut, rr;
execute.checkErrorLevel 'gdxdiff labdata.gdx labdatanew.gdx > %system.NullFile%';

Connect Example for CSV

The following example shows how to read and write CSV files in Connect. The entire code is listed at the end of the example. This model is part of DataLib as model connect02. It starts out with defining some data (stockprice) in a table statement in GAMS. With compile-time embedded Connect code utilizing the GAMSReader agent to bring this data into Connect and exporting it as a CSV file with agent CSVWriter. The GDXWriter agent also creates a GDX file with the data which is then used in a subsequent call to feed gdxdump that produces the same CSV file as CSVWriter. The text comparison tool diff is used to compare the two CSV files. The CSV file look as follows:

"date_0","AAPL","GOOG","MMM","MSFT","WMT"
"2012-20-11",12.124061,314.008026,60.966354,21.068886,46.991535
"2112-20-11",12.139372,311.741516,60.731037,20.850344,47.150307
"2212-20-11",12.203673,313.674286,61.467381,20.890808,46.991535
"2312-20-11",12.350039,315.387848,62.401108,21.068886,47.626663
"2712-20-11",12.448025,318.929565,62.461876,21.076981,47.499634
"2812-20-11",12.328911,318.655609,61.604042,20.898905,47.420238
"2912-20-11",12.404848,320.000549,62.332813,21.060795,47.626663
"3012-20-11",12.401172,321.744019,62.044331,21.012224,47.444057

In remainder of the example this CSV file is read back via the Connect agent CSVReader. The code also utilizes the tool csvread to read the CSV file into a GDX file. The code compares the results of both methods. CSVRead also creates sets with the index elements as Dim1, Dim2, ... Therefore, Connect utilizes the Projection agent to extract the index sets date and symbol from the parameter stockprice as sets Dim1 and Dim2. The Connect agent GDXWriter creates a GDX file of the Connect database which then can be compared with the GDX file created by csvread. The GDX comparison tool gdxdiff is used to compare the two GDX files.

Set date,symbol;
Table stockprice(date<,symbol<)
                AAPL       GOOG       MMM      MSFT       WMT
2012-20-11 12.124061 314.008026 60.966354 21.068886 46.991535
2112-20-11 12.139372 311.741516 60.731037 20.850344 47.150307
2212-20-11 12.203673 313.674286 61.467381 20.890808 46.991535
2312-20-11 12.350039 315.387848 62.401108 21.068886 47.626663
2712-20-11 12.448025 318.929565 62.461876 21.076981 47.499634
2812-20-11 12.328911 318.655609 61.604042 20.898905 47.420238
2912-20-11 12.404848 320.000549 62.332813 21.060795 47.626663
3012-20-11 12.401172 321.744019 62.044331 21.012224 47.444057
;

* Use Connect CSVWriter to write GAMS data in CSV format moving the symbol index into the column (unstack: True)
$onEmbeddedCode Connect:
- GAMSReader:
    symbols: [ {name: stockprice} ]
- GDXWriter:
    file: sp_connect.gdx
    symbols: all
- CSVWriter:
    file: sp_connect.csv
    name: stockprice
    header: True
    unstack: True
    quoting: 2
$offEmbeddedCode

* Use gdxdump to create a CSV file and text compare the Connect and gdxdump CSV files
$call.checkErrorLevel  gdxdump sp_connect.gdx output=sp_gdxdump.csv symb=stockprice format=csv columnDimension=Y > %system.NullFile%
$call.checkErrorLevel  diff -q sp_connect.csv sp_gdxdump.csv > %system.nullFile%

* Use Connect CSVReader to read the newly created CSV file and deposit the result in a csvread compatible format
$onEmbeddedCode Connect:
- CSVReader:
    file: sp_connect.csv
    name: stockprice
    indexColumns: 1
    valueColumns: "2:lastCol"
- Projection:
    name: stockprice(date,symbol)
    newName: Dim1(date)
    asSet: True
- Projection:
    name: stockprice(date,symbol)
    newName: Dim2(symbol)
    asSet: True
- GDXWriter:
    file: sp_connect.gdx
    symbols: all
    duplicateRecords: first
$offEmbeddedCode

* Use CSVRead to create a GDX file and compare the Connect and CSVRead GDX files
$call gamstool csvread sp_connect.csv id=stockprice index=1 values=2..lastCol useHeader=yes gdxout=sp_csvread.gdx > %system.NullFile%
$call.checkErrorLevel gdxdiff sp_connect.gdx sp_csvread.gdx > %system.NullFile%

Command Line Utility gamsconnect

The GAMS system directory contains the utility gamsconnect to run Connect instructions directly from the command line. On Windows the utility has the callable extension .cmd. This script wraps the Python script connectdriver.py by calling the Python interpreter that ships with GAMS. gamsconnect operates as the other Connect drivers on a YAML instruction file. The agents GAMSReader and GAMSWriter are not available from gamsconnect and will trigger an exception. Substitutions can be passed to gamsconnect via command line arguments as key=value, e.g. filename=myfile.csv and even gams.scrdir=/tmp/. gamsconnect is called like this:

gamsconnect <YAMLFile> [key1=value1 [key2=value2 [key3=value3 [...]]]]

Advanced Topics

Concept of Case Sensitivity

This section describes the general concept of case sensitivity in Connect. Connect is a YAML and Python based framework and is therefore case sensitive. The case sensitivity provides Connect users with a better control of arbitrary data that does not necessarily come in a GAMS compatible format. Many agents allow users to clean up, manipulate or transform data in other ways where case sensitivity provides the most flexibility. However, since Connect has many GAMS dependencies (GAMS is case insensitive) and processes data from many other data formats that have their own concept of case sensitivity, there are some exceptions:

• GAMS related operations (e.g. dropDomainViolations, duplicateRecords).
• Symbol names in the Connect database. Example: A symbol p in the Connect database can be accessed via symbol name p or P. And if p exists already, a Connect agent can not create a new symbol P.
• Due to the case insensitivity of symbol names in the Connect database, the index list of the DomainWriter option name is also processed case insensitive. In contrast to Concatenate or Projection where the index list is solely intended to establish the index order, the DomainWriter needs to access sets in the Connect database in order to establish regular domains.
• The behavior can sometimes be case insensitive due to the data source/target (e.g. range, index, ignoreColumns).
• The behavior can sometimes be case insensitive due to the operating system (e.g. the file option is case insensitive on Windows).
• The behavior can sometimes be case insensitive due to other Python libraries used (e.g. readCSVArguments passes key-value pairs directly to pandas).

This implies that most Connect operations are done case sensitive. For instance, agents like Filter, LabelManipulator or Projection operate case sensitive. Consider the following example that uses the Projection agent:

$onecho > p.csv
i1,j1,2.5
i1,j2,1.7
i2,j1,1.8
I2,j2,1.4
$offEcho

Set i;
Parameter p_reduced(i<);

$onEmbeddedCode Connect:
- CSVReader:
    header: False
    file: p.csv
    name: p
    indexColumns: [1,2]
    valueColumns: 3
- Projection:
    name: p(i,j)
    newName: p_reduced(i)
    aggregationMethod: first
- PythonCode:
    code: |
        print(connect.container['p_reduced'].records)
- GAMSWriter:
    symbols:
      - name: p_reduced
        duplicateRecords: first
$offEmbeddedCode

display p_reduced;

Since Projection aggregates case sensitive, both records I2 1.4 and i2 1.8 are kept:

    0  value
0  I2    1.4
1  i1    2.5
2  i2    1.8

From a GAMS (case insensitive) perspective these two records are duplicates. Therefore, duplicateRecords must be set when writing symbol p_reduced to GAMS. With duplicateRecords: first only the first duplicate record is kept.

Case sensitivity also holds for substituting indices or values. Consider the following example where the index j2 should be substituted by ABC when reading the CSV file p.csv:

$onecho > p.csv
i1,j1,2.5
i1,J2,1.7
i2,j1,1.8
i2,j2,1.4
$offecho

Set i,j;
Parameter p(i<,j<);

$onEmbeddedCode Connect:
- CSVReader:
    file: p.csv
    name: p
    indexColumns: [1,2]
    valueColumns: [3]
    header: false
    indexSubstitutions: { j2: ABC }
- GAMSWriter:
    symbols: all
$offEmbeddedCode

display i, j, p;

Since substituting indices is done case sensitive, the index J2 will not be substituted.

            j1          J2         ABC

i1       2.500       1.700
i2       1.800                   1.400

Text Substitutions in YAML Instructions

In many cases one would like to parameterize the text in the Connect instructions. For example, some of the Connect agents require a file name. Instead of hard coding the file name into the YAML instructions, text substitutions allow to have a place holder for the attribute that is substituted out before giving the instructions to Connect. The place holder in the YAML instructions uses the syntax %SOMETEXT%, similar to the GAMS compile-time variables. For example:

- CSVReader:
    file: %MYFILENAME%
    name: distance
    indexColumns: [1, 2]
    valueColumns: [3]

Depending on how Connect runs, the substitution is done in various ways. The section Substitutions in Embedded Connect Code described the substitution mechanisms for embedded Connect code. When Connect is initiated via the command line parameters connectIn or connectOut, the user defined parameter specified by double-dash command line parameters and the given GAMS command line parameters, e.g. %gams.input% will be substituted in the YAML file. The list of parameters available for substitution is printed to the GAMS log at the beginning of the job in the section GAMS Parameters defined.

When Connect is initiated via the shell command gamsconnect all substitutions need to be specified on the command line:

gamsconnect myci.yaml key1=val1 key2=val2 ...

key can be just MYFILENAME or be composed like gams.Input or system.dirSep.

Encoding of YAML Instructions

All instructions provided to the Connect framework are read using UTF-8 encoding (utf-8-sig). This can be customized by adding a comment in the format # coding=<encoding name> or # -*- coding: <encoding name> -*- as first line in the YAML code. Note that UTF-16 encoding is not supported.

Sorting Behavior of Connect Agents

A note on the sorting behavior of Connect agents. All reader and transformer agents do not guarantee a specific order of the created symbol records. However, as the symbol records in the Connect database are saved in categorical data structures, the order in the data source is preserved in ordered categories. All writer agents guarantee that symbol records are written in the order of the categories. Here is an example:

$onecho > ijk_in.csv
i,j,k1,k2
i1,j2,,3
i2,j1,4,
i1,j1,1,2
i2,j2,5,6
$offecho

embeddedCode Connect:
- CSVReader:
    file: ijk_in.csv
    name: ijk
    valueColumns: "3:lastCol"
    indexColumns: [1,2]
- PythonCode:
    code: |
        sym = connect.container["ijk"]
        print("ijk records in the Connect database after reading:\n", sym.records)

        data_sorted = sym.records.sort_values(sym.records.columns[:-1].tolist())
        print("ijk records sorted according to categories:\n", data_sorted)

        sym.reorderUELs(uels=['j1','j2'], dimensions=1)
        data_sorted = sym.records.sort_values(sym.records.columns[:-1].tolist())
        print("ijk records sorted according to reordered categories:\n", data_sorted)
- CSVWriter:
    file: ijk_out.csv
    name: ijk
    unstack: True
endEmbeddedCode

From the data source ijk_in.csv, the CSVReader creates the symbol records as shown with the first print:

ijk records in the Connect database after reading:
     i   j level_2  value
0  i1  j2      k2    3.0
1  i2  j1      k1    4.0
2  i1  j1      k1    1.0
3  i1  j1      k2    2.0
4  i2  j2      k1    5.0
5  i2  j2      k2    6.0

The ordered categories are inferred from the data source, therefore the order for column i is ['i1','i2'], for column j ['j2','j1'] and for column k the order of the header ['k1','k2'] is preserved. The categories define the order of the symbol records if sorted:

ijk records sorted according to categories:
     i   j level_2  value
0  i1  j2      k2    3.0
2  i1  j1      k1    1.0
3  i1  j1      k2    2.0
4  i2  j2      k1    5.0
5  i2  j2      k2    6.0
1  i2  j1      k1    4.0

If the order is not as desired, .reorderUELs() can be used to change the order of the categories, e.g. to ['j1','j2'] for column j:

ijk records sorted according to reordered categories:
     i   j level_2  value
2  i1  j1      k1    1.0
3  i1  j1      k2    2.0
0  i1  j2      k2    3.0
1  i2  j1      k1    4.0
4  i2  j2      k1    5.0
5  i2  j2      k2    6.0

The CSVWriter automatically sorts the symbol records according to the categories (note that the order of column j was changed with the PythonCode agent) and therefore, the content of file ijk_out.csv looks as follows:

i,j,k1,k2
i1,j1,1.0,2.0
i1,j2,,3.0
i2,j1,4.0,
i2,j2,5.0,6.0

Use Connect Agents in Custom Python Code

Instead of passing instructions via one of the Connect interfaces, users can execute them directly in their Python code by creating an instance of ConnectDatabase and calling method .execute(instructions). The instructions argument is expected to be either a Python dictionary of form:

{
   '<agent name>':
   {
      '<root option1>': <value>,
      '<root option2>': <value>,
      ... ,
      '<root option3>':
      [
         {
             '<option1>': <value>,
             '<option2>': <value>,
             ...
         },
         {
             '<option1>': <value>,
             '<option2>': <value>,
             ...
         },
         ...
      ]
   }
}

or a list of such dictionaries in case multiple Connect agents need to be executed. Users can either construct the Python dictionary themselves or let YAML create the dictionary from a YAML script. The following example creates an instance of ConnectDatabase and executes two agents: First, the CSV file stockprice.csv is read into the Connect database and second, the symbol stockprice is written to the GAMS database. In this example, the agent instructions are directly specified as Python dictionaries.

Set dates, stocks;
Parameter stockprice(dates<,stocks<);

$onEcho > stockprice.csv
date;symbol;price
2016/01/04;AAPL;105,35
2016/01/04;AXP;67,59
2016/01/04;BA;140,50
$offEcho

$onEmbeddedCode Python:
from gams.connect import ConnectDatabase
cdb = ConnectDatabase(gams._system_directory, ecdb=gams)
cdb.execute({'CSVReader': {'file': 'stockprice.csv', 'name': 'stockprice', 'indexColumns': [1, 2],
                            'valueColumns': [3], 'fieldSeparator': ';', 'decimalSeparator': ','}})
cdb.execute({'GAMSWriter': {'symbols': [{'name': 'stockprice'}]}})
$offEmbeddedCode

display stockprice;

We can also construct the Python dictionaries by using YAML:

Set dates, stocks;
Parameter stockprice(dates<,stocks<);

$onEcho > stockprice.csv
date;symbol;price
2016/01/04;AAPL;105,35
2016/01/04;AXP;67,59
2016/01/04;BA;140,50
$offEcho

$onEmbeddedCode Python:
import yaml
from gams.connect import ConnectDatabase
cdb = ConnectDatabase(gams._system_directory, ecdb=gams)

inst = yaml.safe_load('''
- CSVReader:
    file: stockprice.csv
    name: stockprice
    indexColumns: [1, 2]
    valueColumns: [3]
    fieldSeparator: ';'
    decimalSeparator: ','
- GAMSWriter:
    symbols:
      - name: stockprice
''')
cdb.execute(inst)
$offEmbeddedCode

display stockprice;

Here YAML creates a list of dictionaries (i.e. a list of agent instructions) from the given YAML script.
